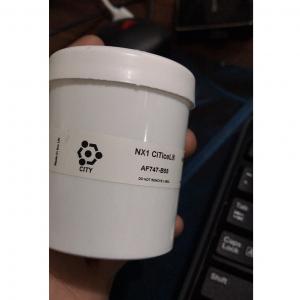

3-electrode Electrochemical Nitric Oxide (NO) Gas Sensor - NX1 CiTiceL

? Operating Principle: 3-electrode electrochemical
? Measurement Range: 0-5,000 ppm NO
? Filter: To remove effect of SO2 in gas stream
? Sensitivity: 0.05 ± 0.01 μA/ppm
? Response Time (T95): <8 Seconds at 20°C
? Repeatability: 2% of signal
? Operating Temperature Range: -20°C to +50°C
? Operating Humidity Range: 15 to 90% RH non-condensing

Model Number: NX1 CiTiceL
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

NX1 CiTiceL Nitric Oxide Sensor (NO Sensor) Key Features & Benefits:
? Designed for Automotive Applications
? Fast Response

NX1 CiTiceL Nitric Oxide Sensor (NO Sensor) Technical Specifications

MEASUREMENT
Operating Principle	3-electrode electrochemical
Measurement Range	0-5,000 ppm NO
Filter	To remove effect of SO2 in gas stream
Sensitivity	0.05 ± 0.01 μA/ppm
Response Time (T95)	<8 Seconds at 20°C
Baseline Offset (clean air)	0 to +12 ppm equivalent
Zero Shift (0°C to +40°C)	<30 ppm equivalent
Resolution	Dependent on electronics (1 ppm when used with recommended electronics)
Repeatability	2% of signal
Linearity	Linear

ELECTRICAL
Recommended Load Resistor	10 ?
Bias Voltage	+300 mV

MECHANICAL
Weight	32 g (nominal)
Housing Material	ABS
Orientation	Any

ENVIRONMENTAL
Operating Temperature Range	-20°C to +50°C
Recommended Storage Temp	0°C to 25°C in CTL packaging
Operating Pressure Range	800 to 1100 mBar
Pressure Coefficient	0.02% signal/mBar
Operating Humidity Range	15 to 90% RH non-condensing

LIFETIME
Long Term Sensitivity Drift	Typically <5% signal loss/year
Storage Life	6 months in CTL container
Standard Warranty	15 months from date of despatch

IMPORTANT NOTES:
Prolonged exposure to high or low humidity may lead to an increased response time.

Connection should be made via PCB sockets only. Soldering to the pins will seriously damage your sensor and invalidate the warranty.

All performance data is based on conditions at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. For sensor performance data under other conditions, contact City Technology.
