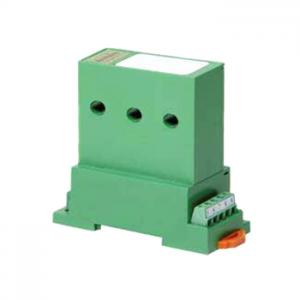

3 Phase, 4 Wire Reactive AC Power Transmitter - CR6261

Product Specification

CR6261 Reactive AC Power Transmitters are designed to provide a controlled output that is proportional to the average being drawn from a power source. These devices are specifically targeted to provide an efficient solution to most power sensing needs.

CR6261 Reactive AC Power Transmitters Features
? Ranges available for any power sensing need
? Connection diagram printed on case
? Active and Reactive power sensing
? DIN Rail or Panel Mount
? 4-20 mA DC output

CR6261 Reactive AC Power Transmitters Specifications
? MTBF: Greater than 100 K hours
? Frequency Range: 50 Hz - 400 Hz
? Power Source: 12 to 24 VDC
? Output Load: 0 to 300 Ω
? Operating Temperature: 0°C to +60°C
? Thermal Drift: 500 PPM/°C
? Basic Accuracy: 0.5%
? Insulation Voltage: 2500 VDC
? Response Time: 250 ms

CR6261 Reactive AC Power Transmitters Applications
? Energy Management
? Motor Efficiency
? Multi-point power sensing
? Remote power sensing over long distances

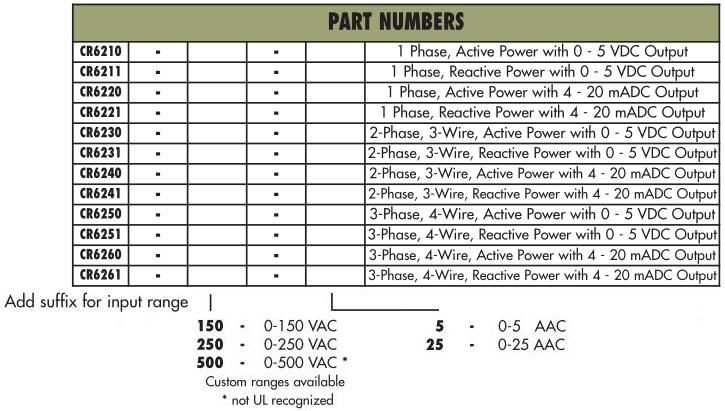

CR6261 Reactive AC Power Transmitters PART NUMBERS
