A Powerful Wired Ultrasonic Anemometer - Ultrasonic Wired
? Wind Speed? Range: 0 to 40 m/s
? Wind Speed? Resolution: ±0.1 m/s?
? Wind direction? Range: 0 - 360°
? Wind direction? Resolution: ±1
? Power?: VCC 5V - 24V
? IP Code?: NOT allow to be submerged fully or partially in water?
- Model Number: Ultrasonic Wired
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification

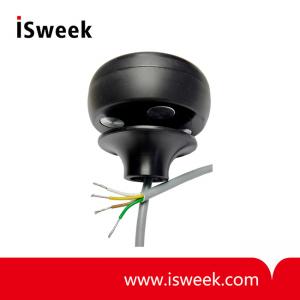

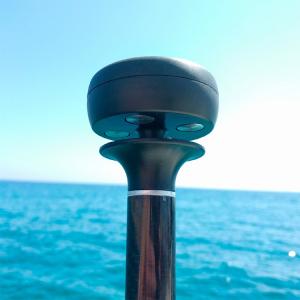

Ultrasonic Wired (Ultrasonic Anemometer) Description
A powerful wired ultrasonic anemometer
Built with ultrasonic sensors, it will provides you one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.
Ultrasonic Wired (Ultrasonic Anemometer) Specifications
|
Wind Speed |
Range: 0 to 40 m/s Resolution: ±0.1 m/s |
|
Wind direction |
Range: 0 - 360° Resolution: ±1 |
|
Sensors |
Ultrasonic transducers (4x) Sample rate: 1, 4, 8 Hz Thermometer, Gyroscope, Accelerometer |
|
Power |
VCC 5V - 24V |
|
Data output |
Bluetooth 4.1 NMEA0183 (RS422, RS485), sentences selectables via Bluetooth Baud rate: 4800/38400 (8n1) bauds. |
|
Firmware |
Upgradable Current version: 0.44 |
|
IP Code |
NOT allow to be submerged fully or partially in water |
|
Dimensions |
Diameter: 70 mm Height: 57 mm Cable: 1.5 meters |
|
Weight |
130 grams |
