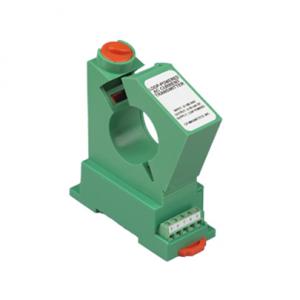

AC/DC Hall Effect Current Transducer - CR5410S

? Current: AC Current, DC Current
? Voltage Type: AC Voltage
? Frequency: AC Frequency, DC Frequency
? Split Core: True
? RMS: True RMS, Average RMS
? Elements: Single Element
? Outputs: 0 +/- 5 VDC, 0 +/- 5 VAC
? Power: 24 Vdc Power
? Hall Effect: Hall Effect
? Mount: DIN Rail Mount, Panel Mount

Model Number: CR5410S
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CR5410 Series AC/DC Hall Effect Current Transducers are designed to provide a bipolar output that proportionally reflects (traces) the waveform of the input current. These devices are specifically targeted to be used in applications where multi-mode current sensing is required.

CR5410S AC/DC Hall Effect Current Transducer Features
? +/-5 Vdc and +/-5 Vac outputs
? 24 Vdc powered
? Highest precision available
? Connection diagram printed on case

CR5410S AC/DC Hall Effect Current Transducer Specifications
? Basic Accuracy: 1.0%
? Calibration: True RMS Sensing, DC
? Thermal Drift: 500 PPM/°C
? Operating Temperature: 0°C to +60°C
? Installation Category: CAT II
? Polution Degree: 2
? Insulation Voltage: 2500 Vdc
? Altitude: 2000 meter max.
? Frequency Range: DC only for DC and 20 Hz - 4 KHz for AC
? MTBF: Greater than 100 K hours
? Cleaning: Water-dampened cloth
? Supply Voltage: 24 Vdc ±10%
? Output Load: 2K Ω or Greater
? Response Time: 0.25 ms max
? Relative Humidity: 80% for temperatures up to 31°C and decreasing linearly to 50% at 40°C

CR5410S AC/DC Hall Effect Current Transducer Applications
? Inverter and multi-frequency drives
? Multi-mode ground paths carrying both AC and DC Signals
? Feed back loop building block

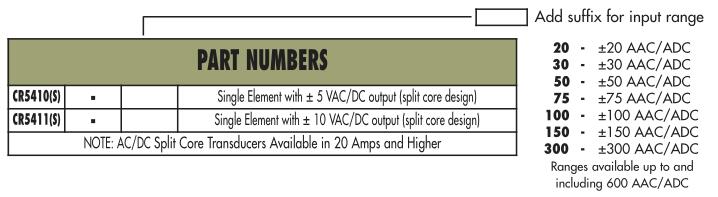

CR5410S AC/DC Hall Effect Current Transducer PART NUMBERS
