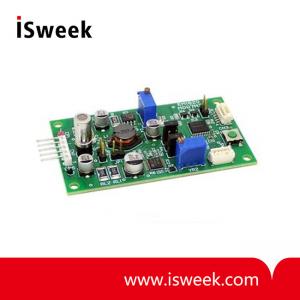

Acetone Gas Sensor Evaluation Module For TGS1820 - EM1820
Mouse over image to zoom
Product Specification
Acetone Gas Sensor Evaluation Module For TGS1820 EM1820 Description:
This module facilitates evaluation of the characteristics of the acetone gas sensor TGS1820.*1The sensor sensitivity (⊿VOUT) is obtained by calculating the difference between the voltage output in a clean atmosphere and the voltage output in gas. *2
1 Please refer to Product Information for TGS1820 for sensor characteristics.
2 This module will output the response of the TGS1820 sensor as a voltage change. Temperature compensation for sensor output is not a feature provided by this module.
