ADC IC - CJC5340
Advanced Multi-bit Delta-Sigma Architecture
24-bit Conversion
Supports All Audio Sample Rates Including 192 kHz
-88 dB THD+N
77 mW Power Consumption
- Model Number: CJC5340
- Data Sheet:
- Quantity:
- - +
Product Specification
The CJC5340 is a complete analog-to-digital converter for digital audio systems. It performs sampling, analog-to-digital conversion, and anti-alias filtering, generating 24-bit values for both left and right inputs in serial format sample rates up to 200 kHz per channel.

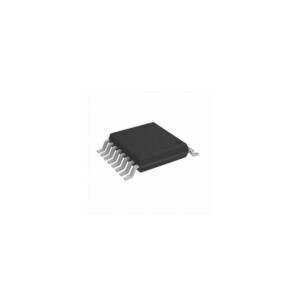

The CJC5340 uses a 5th-order, multi-bit Delta-Sigma modulator followed by digital filtering and decimation, which removes the need for an external anti-alias filter. The CJC5340 is available in a 16-pin TSSOP package for Commercial (-10° to +70° C) and Automotive grades (-40° to +85° C).The CJC5340 is ideal for audio systems requiring wide dynamic range, negligible distortion and low noise, such as set-top boxes, DVD-karaoke players, DVD recorders, A/V receivers, and automotive applications.
Application：
Speaker box
Headphones
Sound
Sonic blaster
IPC
Story machine
