英國Analox Multi-gas Safety Monitor with Data Output Module - P0159-861

Product Specification

P0159-861 Multi-gas Safety Monitor with Data Output Module describe：

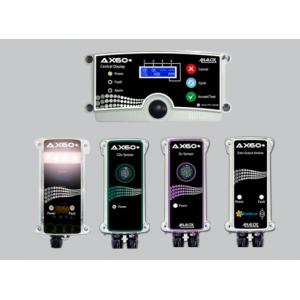

The Ax60+ is a wall-mountable gas safety device for monitoring oxygen and carbon dioxide. Based on the popular Ax60 CO2 detector, the new Ax60+ can also be supplied with O2 sensor modules which provides an early warning of both oxygen depletion and oxygen enrichment. The CO2 and O2 sensors are interchangeable and can be fully integrated as part of a multi-point, multi-gas detection and alarm system.

The CO2 sensor is set by default to trigger a low-level alarm at 1.5% CO2, an evacuation alarm at 3% CO2 and a time-weighted average alarm of 0.5% CO2 measured over eight hours. The O2 sensor is set by default to trigger low-going alarms at both 19.5% and at 18% and a high-going alarm at 23%. The alarm setpoints can be changed by the user. Warnings are announced by high-visibility strobe lights and high-volume sounders.

A Data Output Module can now be purchased as an accessory for the Ax60+. The module uses 4-20mA and MODBUS RTU communications to transmit real time updates of sensor activity and status to a Building Management System (BMS) or central control panel.

P0159-861 Multi-gas Safety Monitor with Data Output ModuleProduct features：

Multi-point, multigas, distributed monitoring system 4-channel flexibility allowing any fixed sensor combination Central display unit for remote operation and control

User-configurable alarms, setpoints and relay outputs Built-in software for operation and maintenance tasks Ability to connect to a BMS or central
