ANSI Metering Class Current Transformers - CR2DA

Product Specification

The ANSI metering class transformers are higher-cost units intended for power monitoring applications where high accuracy and minimum phase angle error are required.

CR2DA ANSI Metering Class Current Transformers Features
? Ultra low frequency to 20 Hz
? High volume, low cost styles
? 1.0, 0.2 & 0.1 ACA secondary ratios available
? UL, CUL, CE, RoHs recognized

CR2DA ANSI Metering Class Current Transformers Specifications
? Frequency: 50 to 400 Hz
? Insulation Voltage: 3500 Vac/1min.
? Basic Accuracy: 90% FS or better (ANSI)
? Operating Temperature: -20°C to +75°C
? Installation Category: CAT II
? Pollution Degree: 2

CR2DA ANSI Metering Class Current Transformers Applications
? Ammeter
? Energy Management
? Watt/VAR/Watthour Transducers

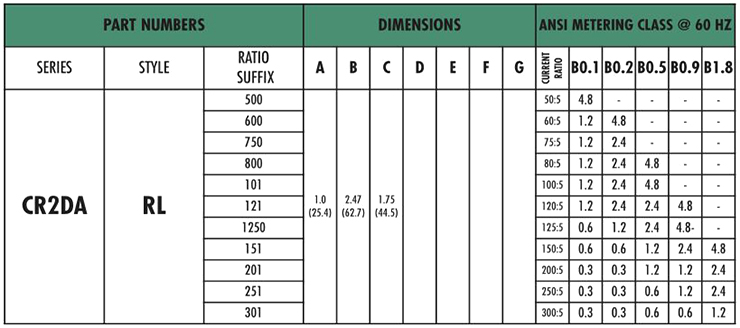

CR2DA ANSI Metering Class Current Transformers
