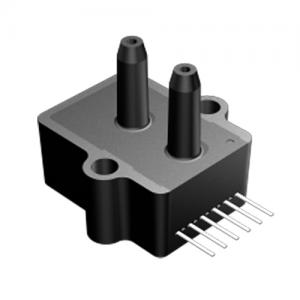

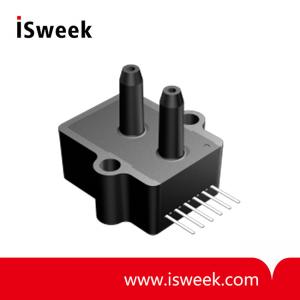

AXCA Series ASCX Compatible Amplified Pressure Sensors - 15 PSI-A-4V-ASCX

? Supply Voltage: +4.5 to +5.5 Vdc
? Lead Soldering Temperature (2-4 sec.): 250 °C
? Quiescent Current: 7.5 mA
? Compensated Temperature: 0 to 70°C
? Operating Temperature: -25 to 105°C
? Storage Temperature: -55 to 125°C
? Humidity Limits (non condensing): 0 to 95% RH

Model Number: 15 PSI-A-4V-ASCX
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ASCX Series Compatible Pressure Sensors
Compatible to Sensym ASCX Series

ASCX Series Compatible Pressure Sensors General Description
The Amplified line of middle pressure sensors is based upon a proprietary package technology to reduce errors. This model provides a ratiometric 4.5-volt output span with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with noncorrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

ASCX Series Compatible Pressure Sensors Features
? 5 Vdc Supply
? High Level Voltage Output
? Ratiometric 4.5 V Span
? Temperature Compensated
? Calibrated Zero and Span
? MULTIPLE Pressure Ranges

ASCX Series Compatible Pressure Sensors Applications
? Medical Instrumentation
? Environmental Instrumentation
? HVAC Instrumentation
? Pneumatic Controls

AXCA Series ASCX Compatible Pressure Sensors

Maximum Ratings		Environmental Specifications
Supply Voltage, Vs	+4.5 to +5.5 Vdc	Compensated Temperature	0 to 70°C
Lead Soldering Temperature (2-4 sec.)	250 °C	Operating Temperature	-25 to 105°C
Quiescent Current	7.5 mA	Storage Temperature	-55 to 125°C
		Humidity Limits (non condensing)	0 to 95% RH

ASCX Series Compatible Pressure Sensors Pressure Ranges

Part Number	Operating Pressure	Proof Pressure	Burst Pressure
1 PSI-D-4V-ASCX	0 - 1 PSID	5 PSI	10 PSI
5 PSI-D-4V-ASCX	0 - 5 PSID	15 PSI	30 PSI
15 PSI-D-4V-ASCX	0 - 15 PSID	45 PSI	75 PSI
15 PSI-A-4V-ASCX	0 - 15 PSIA	45 PSI	75 PSI
30 PSI-D-4V-ASCX	0 - 30 PSID	100 PSI	150 PSI
30 PSI-A-4V-ASCX	0 - 30 PSIA	100 PSI	150 PSI
100 PSI-D-4V-ASCX	0 - 100 PSID	150 PSI	150 PSI
100 PSI-A-4V-ASCX	0 - 100 PSIA	150 PSI	150 PSI

Performance Characteristics for 1/5 PSI-D-4V-ASCX

Parameter	Minimum	Nominal	Maximum	Units
Output Span	4.43	4.50	4.57	Volt
Span Shift (0 °C to 70 °C)	-	±0.2	±1.5	%Span
Offset Voltage @ zero pressure	0.18	0.25	0.32	Volt
Offset Shift (0 °C to 70 °C)	-	±0.5	±1.5	%Span
Combined Linearity and Hysteresis Error	-	±0.1	±0.5	%Span
Repeatability	-	±0.2	±0.5	%Span
Response Time	-	100	-	uSec

Performance Characteristics for 15/30/100 PSI-x-4V-ASCX

Parameter	Minimum	Nominal	Maximum	Units
Output Span	4.45	4.50	4.55	Volt
Span Shift (0 °C to 70 °C)	-	±0.2	±1.0	%Span
Offset Voltage @ zero pressure	0.20	0.25	0.30	Volt
Offset Shift (0 °C to 70 °C)	-	±0.5	±1.0	%Span
Combined Linearity and Hysteresis Error	-	±0.1	±0.5	%Span
Repeatability	-	±0.2	±0.5	%Span
Response Time	-	100	-	uSec
