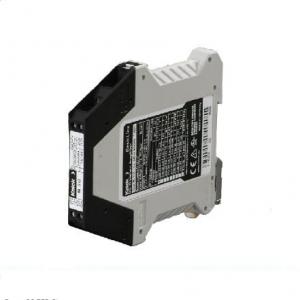

BasicLine BL 513 Standard-Signal Isolator - BL 513
The BasicLine BL 513 standard-signal isolators are used for galvanic isolation of 0(4) to 20 mA and 0 to 10 V standard signals.
- Model Number: BL 513
- Data Sheet:
- Quantity:
- - +
Product Specification
1.Caution!
Only trained and qualified personnel should install the BasicLine BL 513 standard-signal isolators.
Do not connect the device to power supply before it is professionally installed. Do not change the measuring range during operation. Observe the national codes and regulations for installation and selection of cables and lines. Equipment shall be provided with a means for disconnecting it from each operating energy supply source. The disconnecting means shall disconnect all current-carrying conductors.
It must be easily accessible and clearly identifiable by the operator. Mains supply must be protected by a fuse ≤ 20 A.
2. Intended Use
The BasicLine BL 513 standard-signal isolators are used for galvanic isolation of 0(4) to 20 mA and 0 to 10 V standard signals. DIP switches allow selection of calibrated input and output signals. Fine-adjusting is not required.
Signal transmission is linear. The universal power supply allows operating the device with 24 V DC or with 100 ... 230 V AC. Connection is made using screw clamp terminals.
