Cabinet Mounted Turbidity / TSS / MLSS Analyzers - ZS-600/ZS-680/MLSS-330
? Industrial-line turbidity measurement and control instruments
? Digital temperature compensation
? 4 ~ 20mA current output
? Power supply: 220VAC ±10%
- Model Number: ZS-600/ZS-680/MLSS-330
- Data Sheet:
- Quantity:
- - +
Product Specification

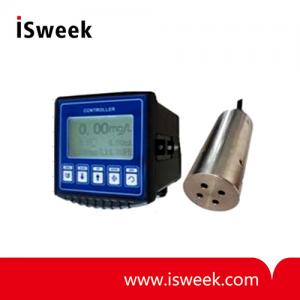

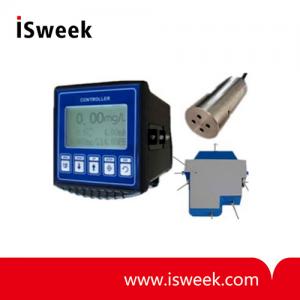

Cabinet Mounted Turbidity / TSS / MLSS Analyzers
This product is a cost-effective type of industrial-line turbidity measurement and control instruments, digital temperature compensation, 4 ~ 20mA current output, suitable for chemical, oil refining, paper, sugar, pharmaceuticals and other industrial sectors and general industrial water-line monitoring and control.
Cabinet Mounted Turbidity / TSS / MLSS Analyzers Technical Parameters
|
Model |
ZS-600 |
ZS-680 |
MLSS-330 |
|
Product
picture |
 |
 |
 |
|
Measuring
range |
Circulation type: 0 ~ 10/20/100/200/500/600NTU Input type: 0 ~ 500/2000/4000NTU |
0 ~ 2000mg/l |
0 ~ 50000mg/l |
|
Resolution |
1NTU |
1mg/l |
1mg/l |
|
Accuracy |
±1.5% |
±1.5%F.S. |
±1%F.S. |
|
Power supply |
220VAC ±10% |
220VAC ±10% |
220VAC ±10% |
|
Output signal |
4 ~ 20mA output, two wire system |
4 ~ 20mA Isolated signal two wire system |
4 ~ 20mA output, two
wire system |
|
Installation |
Circulation type /input type |
Input type |
Input type |
