Combustible Gas and Toxic Gas Detector - TC100N

Product Specification

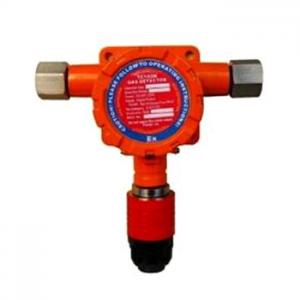

TC100N Fixed Gas Detector

ATEX Approved

Features:

-Excellent repeatabiLity
-HardLy affected by the Tem and Hum
-High sensitivity and Long Life
-Low drift and reliabLe performance
-Small size and easy to install
-4-20mA or RS485 singnal output
-PCB protection design can reduce fault rate
-Explosion proof design, suitabLe for hazardous place use

Specifications:

- Target gas: Combustible gases and Toxic gases
- Method of detection: Natural diffusion
- Sensor type: Cata Lytic gas sensor for combustible gas Electrochemical gas sensor for toxic gas.
- Response time: <30s
- Accuracy: F.S.+5%
- Repeatability: F.S.+3%
- Working condition:Combustible gas: Tem.:-40oC?70oC; Toxic gas: Tem.:-20oC-50oC;Hum.:<=95%RH
- Explosion-proof: ExdIICT6
- Protection degree: lP65
- Working voltage: DC24V +/-25%
- Output signals: RS485 digital output;4-20mA optional
- Power Consumption: 2W
- Cable:<=RWP l.5mm2X4 0r l.5mm2X3
- Transmit distance:<=1000m
- Pressure: 86kPa-106kPa
- Installscrew thread: Gl/2, G3/4
- Colour: Orange
- Weight: lOOOg
- Material: Aluminum
