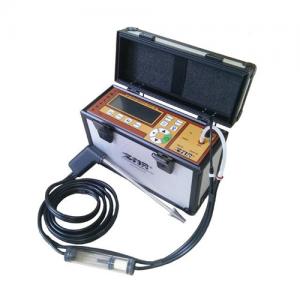

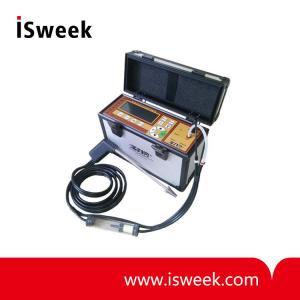

Combustion Gas Analyzer - IMR 1400-C

Product Specification

IMR 1400 - compact

* has been designed to measure flue gases on
  ? Boilers
  ? Burners
  ? Engines
* has been developed to meet the customers need
* is a high quality combustion gas analyzer using the latest sensor technology
* is easy to use and measures all the important parameters to adjust and optimize the combustion process

IMR 1400-C Combustion Gas Analyzer Standard Features
* Portable and very compact combustion gas analyzer housed in a rugged aluminum case
* Simultaneous measurement of
    O2 Oxygen
    CO Carbon Monoxide
    TG Flue-gas temperature
* Calculation of following parameters according
    ASME-equations
    Combustion efficiency
    Losses
    Excess Air
    CO2 Carbon Dioxide
* 7 Fuels are programmed - 5 fuels are programmable
* Automatic zero calibration
* Integrated self-check program
* Simultaneous display of eight parameters on the illuminated display
* Unit selection : ppm - mg - mg(ref O2) - mg/kWh
* Gas sampling probe E - length 0.8 ft , hose 8 ft
* Rechargeable battery with charger
* Power supply 110V or 230V

IMR 1400-C Combustion Gas Analyzer Optional Features
* Ambient air temperature probe
* Gas sampling probe with heated handle
* Gas sampling probes with different lengths
* Electronic controlled soot measurement
* Draft measurement
* NO-measurement
* SO2-measurement
* NO2-measurement
* CO2-measured (NDIR sensor)
* HC-measurement
* CO-bypass valve with purging pump
* RS 232 interface
* Memory for 200 measurements
* 12V DC power jack
* Printer (1400 C/P)

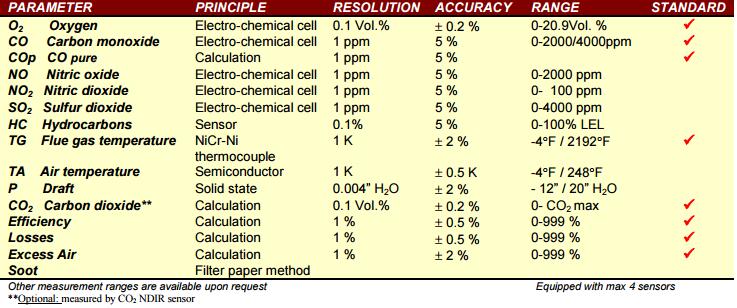

IMR 1400-C Combustion Gas Analyzer Technical Data
