Communication Board For Gas Sensor Evaluation Modules - EM7000
Communication interface for transferring output signals from Figaro sensor evaluation modules to an external PC

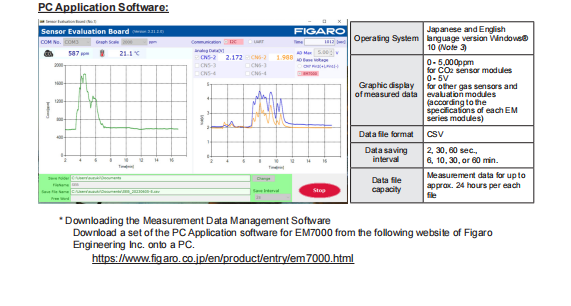

PC application software for importing and saving gas measurement data on a PC
Real-time graphic display of gas concentration or output voltage of the gas sensors on a PC monitor
Easy control of gas measurement operations through the control panel on a PC monitor
- Model Number: EM7000
- Quantity:
- - +

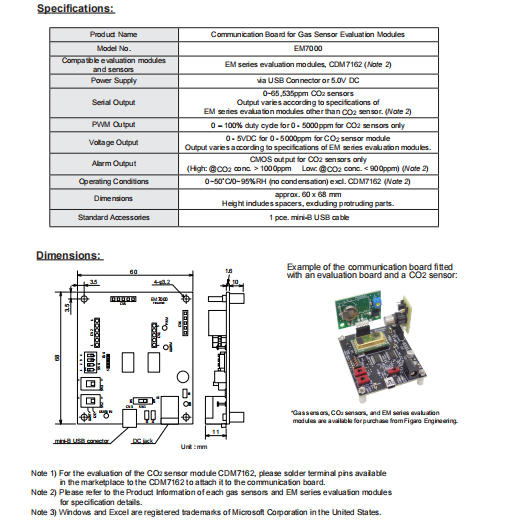

Product Specification
The EM7000 communication board is designed to transfer output from EM series sensor evaluation modules to an external computer for facilitating evaluation of the characteristics of various Figaro gas sensors. Equipped with a USB connector to transfer output data from the EM series evaluation modules to a PC via serial communication, an output terminal for gas concentration data in PWM format from the CDM series CO2 sensor, and a terminal for voltage output converted from PWM output, this communication board allows for a quick and easy start to evaluate the characteristics of Figaro gas sensors.
The communication board includes a USB memory stick containing PC application software and a Mini-B USB cable. Please note that Figaro gas sensors or EM series evaluation modules are not included, but can be purchased separately depending on evaluation needs.
Communication Board For Gas Sensor? Evaluation Modules?EM7000?Features:
