Conductivity Sensor 4-Electrode - SE 600

Product Specification

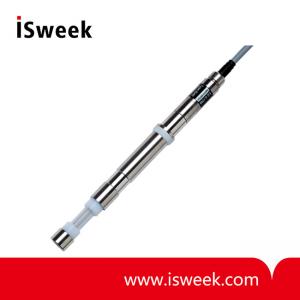

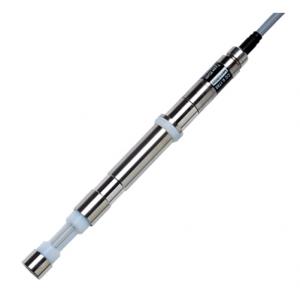

SE 600 Conductivity Sensor
4-electrode sensor for high-pressure and high-temperature applications; large measuring range from pure water up to high conductivities

For special chemistry applications up to 210℃ and 25 bar. Universal measuring range from pure water to 600 mS/cm. With fixed cable and integrated temperature detector.
Process-wetted materials: stainless steel and PTFE; very compact design.

SE 600 Conductivity Sensor Applications
Special chemical processes; condenser monitoring, also for heavily polluted, e.g. fibrous media, pulp production.

SE 600 Conductivity Sensor Facts
 - Large measuring range due to 4-electrode technology
 - Measurement at high temperatures and pressures
 - High level of process safety due to durable materials and robust design
 - Slim, ultracompact design (25 mm diameter)

SE 600 Conductivity Sensor Specifications
