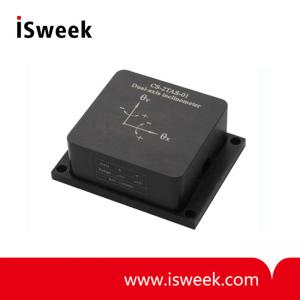

CS-2TAS-01 Series Dual Axis Inclinometer - CS-2TAS-01A/B/D/F/G

? Measuring range: ±30°
? Power:10 - 30VDC
? Power current: <20mA
? Non-linearity: ≤0.5﹪FS
? Resolution: ≤0. 1°
? Temperature range:-40 ~ 70℃
? Size: 82mm×52mm×43 mm

  • Model Number: CS-2TAS-01A/B/D/F/G
  • Data Sheet: Date Sheet File
Quantity:
- +
  • CS-2TAS-01 Series Dual Axis Inclinometer
  • CS-2TAS-01 Series Dual Axis Inclinometer
Mouse over image to zoom
Share:

Product Specification

CS-2TAS-01 Series?Dual Axis Inclinometer

Product Type：CS-2TAS-01A/B/D/F/G

CS-2TAS-01 Series?Dual Axis Inclinometer?Features
? High resolution, low cost
? Full temperature scale compensated
? Non-linearity compensated and correction
? Range optional

CS-2TAS-01 Series?Dual Axis Inclinometer?Specifications
Measuring range
 ±30°
Power
 10 - 30VDC
Power current
 <20mA
Non-linearity
 ≤0.5﹪FS
Resolution
 ≤0. 1°
Output
??CS-2TAS-01A: 0.5 - 4.5V,Voltage output
??CS-2TAS-01B: RS232, Digital output
? CS-2TAS-01D:
 4 - 20mA, Current output
? CS-2TAS-01F:
 RS485, Digital output
? CS-2TAS-01G:
 Pulse output
Temperature range
 -40 ~ 70℃
Size
 82mm×52mm×43 mm
