DC Hall Effect Current Transducer +/- 5 VDC Output - CR5210

? Current: DC Current
? Frequency: DC Frequency
? RMS: N/A
? Elements: Single Element
? Outputs: 0 +/- 5 VDC
? Power: 24 Vdc Power
? Hall Effect: Hall Effect
? Mount: DIN Rail Mount, Panel Mount

Model Number: CR5210
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CR5210 DC Current Sensing Transducers are designed to provide a DC signal which is proportional to a DC sensed current. These devices are designed for direct current only, tartgeting them towards general and daily applications. The ranges 2 to 10 Amp utilize an advanced Magnetic Modulator technology and the ranges 20 amps and above utilize Hall Effect technology. The CR5210 has a +/- 5VDC that is Bi-Directional, ideal for battery charging applications.

CR5210 DC Hall Effect Current Transducer Features
? Non-contact DC current sensing
? Closed loop sensing for accuracy
? +/- 5 VDC output
? Connection diagram printed on case
? DIN rail or panel mount

CR5210 DC Hall Effect Current Transducer Specifications
? Thermal Drift: 500 PPM/C
? Operating Temperature: 0°C to +50°C
? Response Time: 250 ms
? Insulation Voltage: 2500 VDC
? MTBF: Greater than 100 K hours
? Supply Voltage: 24 VDC
? Frequency Range: DC
? Output Load: 2 K Ω or greater
? Basic Accuracy: 1.0 %

CR5210 DC Hall Effect Current Transducer Applications
? Power supply management
? DC motor drives
? Battery chargers and systems
? Mobile applications

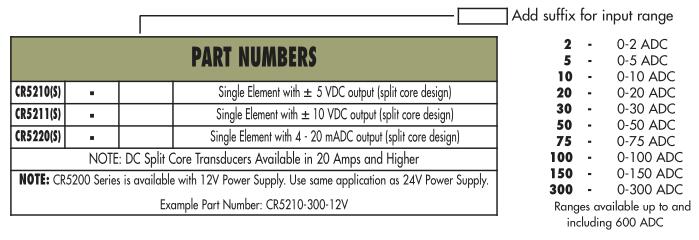

CR5210 DC Hall Effect Current Transducer PART NUMBERS
