Digital Temperature and Humidity Transmitter with Display - JWST-10

? Humidity Range: 0～100%RH
? Temperature Range: 0°C～50°C
? Humidity Accuracy: ±3％RH (5％RH～95％RH, 25°C)
? Temperature Accuracy: ± 0.5°C (25°C)
? RS485 or RS232 communication interface
? 4～20mA, 0～5V or 0～10V Standard analog output
? Working? Temperature?: -10°C～60°C

Model Number: JWST-10

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

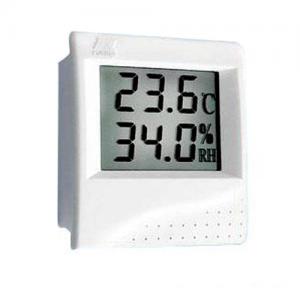

JWST-10 Digital Temperature and Humidity Transmitter Introduction
Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free.

JWST-10 Digital Temperature and Humidity Transmitter Characteristic
? Big screen display temperature and humidity
? RS485 or RS232 communication interface
? 4mA～20mA, 0V～5V or 0V～10V Standard analog output
? Fast response
? Standard 86 terminal box installation

JWST-10 Digital Temperature and Humidity Transmitter Use
Applicable to temperature and humidity measurement of telecommunication room, offices, factories, workshop, hospital, archives, museums, hvac, building automation and so on.

JWST-10 Digital Temperature and Humidity Transmitter Parameters

Power supply	Current output: DC 24V (22V~26V)
	Voltage output: DC 24V (12V~24V)
	Net output: DC 24V (12V~24V)
Max current	Current output: 50mA (DC 24V)
	Voltage output: 20mA (DC 24V)
	Net output: 20mA (DC 24V)
Accuracy	Humidity: ±3％RH (5％RH～95％RH, 25°C)
Accuracy	Temperature: ± 0.5°C (25°C)
Working Temperature	-10°C～60°C
Range	Humidity: 0～100%RH
Range	Temperature: 0°C～50°C
Response time	≤15s (1m/sair speed)
Long-term stability	Humidity: ≤ 1%RH/y
Long-term stability	Temperature: ≤ 0.1°C/y
Output signal	Current output: 4～20mA
	Voltage output: 0～5V or 0 ~ 10V
	Net output: RS485/RS232
Load capacity	Voltage output: output impedance ≤ 250Ω
Load capacity	Current output: ≤ 500Ω
Installation	Wall mounted
Shell	ABS white 104mm x 87mm x 31mm
