Electrochemical O2 Oxygen Sensor - ME2-O2
* Low consumption
* High precision
* High sensitivity
* Extensive linear range
* Strong anti-interference ability
* Excellent repeatability and stability
- Model Number: ME2-O2
- Quantity:
- - +
Product Specification
1.Electrochemical O2 Oxygen Sensor ME2-O2 Description
ME series O2 sensors have low consumption, mini size, high sensitivity, wide range of linearity, and better anti-jamming capacity, good reproducibility,stability and reliability ect advantage. It is electrochemical sensor widely suits for mine, industry and environmental protection field .ect
2.Electrochemical O2 Oxygen Sensor ME2-O2 Features
* Low consumption
* High precision
* High sensitivity
* Extensive linear range
* Strong anti-interference ability
* Excellent repeatability and stability
3.Electrochemical O2 Oxygen Sensor ME2-O2 Application
Detecting O2 in industry,mine and environmental protection fiel
4.Electrochemical O2 Oxygen Sensor ME2-O2 Parameter
|
Type |
ME2-O2 |
Remark |
|
Measurement Range |
0-25%vol |
|
|
Output signal |
0.250±0.5mA( In Air) |
RL=100Ω |
|
Reproducibility |
Output signal ±2% |
|
|
Response time (t90) s |
≤30 |
|
|
Signal attenuation |
≤2% |
/month |
|
Zero drift (ppm) |
≤0.1%vol |
Clean air |
|
Temperature range (℃) |
-20 ~ +50 |
|
|
Temperature drift (ppm) |
≤0.1%vol |
20 ~ 50℃ |
|
Humidity range |
≤95%RH |
|
|
Pressure range (kPa) |
90 ~ 110 |
|
|
Storage temperature (℃) |
0 ~ 20 |
recommendation |
|
Storage period (month) |
6 |
|
|
anticipated using life (month) |
>24 |
|
|
Max detecting concentration (ppm) |
30%vol |
|

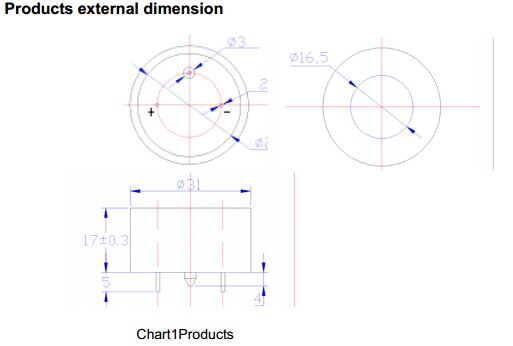

5.Electrochemical O2 Oxygen Sensor ME2-O2 Proucts external dimension
