Electrochemical Oxygen Sensor 0~25% vol - ME3-O2

* Low consumption
* High precision
* High sensitivity
* Extensive linear range
* Strong anti-interference ability
* Excellent repeatability and stability

Model Number: ME3-O2

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

ME3-O2

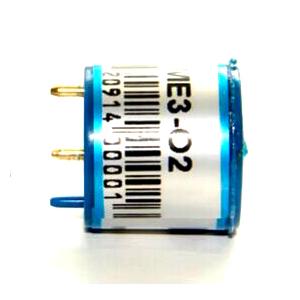

Electrochemical Oxygen Sensor

ME series O2 sensors have low consumption, mini size, high sensitivity, wide range of linearity, and better anti-jamming capacity, good reproducibility,stability and reliability ect advantage. It is electrochemical sensor widely suits for mine, industry and environmental protection field .ect

Features

* Low consumption
* High precision
* High sensitivity
* Extensive linear range
* Strong anti-interference ability
* Excellent repeatability and stability

Application
Detecting O2 in industry,mine and environmental protection field

Type	ME3-O2	Remark
Measurement Range	0-25%vol
Output signal	0.150±0.5mA(in air)	RL=100Ω
Reproducibility	Output signal ±2%
Response time (t90) s	≤30
Signal attenuation	≤2%	/month
Zero drift (ppm)	≤0.1%vol	Clean air
Temperature range (℃)	-20 ~ +50
Temperature drift (ppm)	≤0.1%vol	20 ~ 50℃
Humidity range	≤95%RH
Pressure range (kPa)	90 ~ 110
Storage temperature (℃)	0 ~ 20	Recommendation
Storage period (month)	6
anticipated using life (month)	>24
Max detecting concentration (ppm)	30%vol
