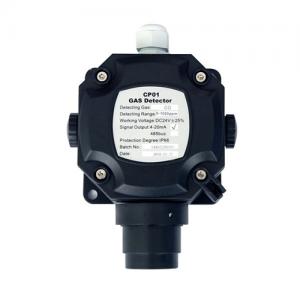

Fixed Gas Detector - CP01

? Sampling Method: Natural Diffusion
? Response Time: <60s
? Power supply: DC24V±25%
? Power Consumption: 2W/channel
? Protection Grade: IP65
? Working Condition: -20°C~50°C, ≤95%RH
? Signal output: 4-20mA signal or RS485 signal
? Dimension L x B x H: 165 x 118 x 62(mm)

Model Number: CP01
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CP01 Fixed Gas Detector Brief introduction
CP01 fixed gas detector is designed for use in the non-explosive environment to monitor gas concentration of combustible gas (LEL) or toxic gas. With high-quality electrochemical/catalytic gas sensor and excellent craftwork, it has advantages of good repeatability, disturbing-proof against temperature and humidity, long life-span and easily operation.

CP01 Fixed Gas Detector Features:
? Small size and easy to install
? Small drift and reliable performance
? Economic type
? 4-20mA or RS485 output optional

CP01 Fixed Gas Detector Specifications

Gas	Range	Resolution	L-alarm	H-alarm
LEL	0-100%LEL	1%LEL	20%LEL	50%LEL
CO	0-1000PPM 0-500PPM	1PPM	35PPM	200PPM
H2S	0-100PPM	1PPM	10PPM	15PPM
O2	0-30%VOL	0.1%VOL	19.5%VOL	23.5%VOL
NH3	0-100PPM	1PPM	25PPM	50PPM

? Sampling: Diffuse naturally
? Response time: <60s
? Power supply: DC24V±25%
? Consumption: 2W
? Working condition: Tem.: -20°C ~ 50°C; Hum.: ≤95%
? Protection grade: IP65
? Signal output: 4-20mA signal or RS485 signal
? Air pressure: 86kPa ~ 106kPa
? Cable: 4-20mA output 1.5 mm 2 x 3 field cable
? RS485 output 1.5 mm 2 x 4 field cable
? Dimension: L x B x H: 165 x 118 x 62(mm)
? Weight: ≤500g
