Gas Track Universal Calibrator - U-CAL

? Temperature rating: -10 to +60° C
? Construction: ABS (UL94-V0) enclosure with protective silicone cover
? Seal rating: IP40
? Supply voltage: Powered by the product being calibrated
? Current consumption: 100mA maximum
? Cable connector: 9-pin D-type connector
? Compact, lightweight design

Model Number: U-CAL
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

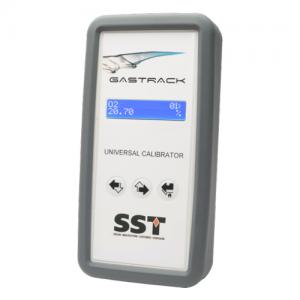

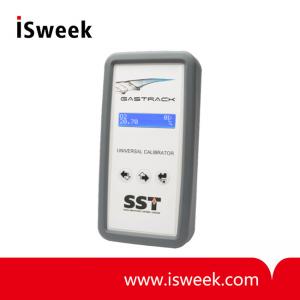

Gas Track Universal Calibrator

Universal Calibrator is a hand-held device that simplifies calibration and configuration: no need for multimeters or screwdrivers.

U-CAL Gas Track Universal Calibrator FEATURES
? Intuitive menu structure makes configuration and calibration quick and simple - no more meters or screwdriver adjustments!
? Powered by the product being calibrated
? Compact, lightweight design
? LCD screen - alpha numeric display
? Easy to clean soft-touch buttons

U-CAL Gas Track Universal Calibrator APPLICATIONS
? Display and configuration:
? Sensor status and calibration
? Communication settings
? Analogue output measurements
? Alarm status and thresholds
? Hardware testing
? Can be used with all GasTrack products

U-CAL Gas Track Universal Calibrator TECHNICAL SPECIFICATIONS

Temperature rating	-10 to +60°C
Construction	ABS (UL94-V0) enclosure with protective silicone cover
Seal rating	IP40
Supply voltage	Powered by the product being calibrated
Current consumption	100mA maximum
Cable connector	9-pin D-type connector
Display	LCD screen alpha numeric 16 character x 2 line blue screen with white text
Keypad	3 x soft-touch buttons

U-CAL Gas Track Universal Calibrator ORDER INFORMATION
Specify the part number below when ordering the Universal Calibrator.

U-CAL

Cables available separately. Specify the part number that corresponds to the option you require - include the U-CAL prefix.

Part Number	Connector / Cable Assignment
U-CAL-UGT (Universal Gas Transmitter Probe only)	8-way, M12 T-connector (male to female)
U-CAL-IDC (All other Gastrack products)	8-way, IDC female connector
