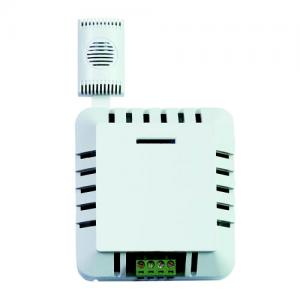

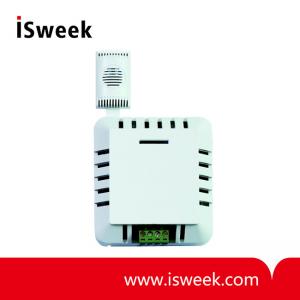

General Wall-mounted Temperature and Humidity Transmitter - JWSL-2

? Power voltage?: 24VDC (18-30V)?
? ±0.5°C and ±3.0%RH accuracy
? Output?: 4-20mA, 0-5Vdc, RS-232/485
? CE and ROHS certifications
? Response time?: <15s (wind speed >1m/s)?
? Operating temperature: -10°C ~ 60°C
? Operating humidity: 5%RH ~ 95%RH?

Model Number: JWSL-2
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JWSL-2 Temperature and Humidity Transmitter Introduction
It is designed sensor and transmitter integrated, which can applied to the hvac level indoor environment temperature and humidity measurement.

JWSL-2 Temperature and Humidity Transmitter Use
The model JWSL-2 series product is a temperature and humidity transmitter. It converts the temperature and humidity of air to stand electrical signals (e.g. 4-20mA, 0-5VDC, RS-232/485) for auto control system or remote data acquisition system. It's extensively used for fields such as smart building, telecommunication, electric power, petrifaction, environmental protection, papermaking, metallurgy, foodstuff, medical treatment etc.

JWSL-2 Temperature and Humidity Transmitter Characteristic
? Wall-mounted installation easily
? ±0.5°C and ±3.0%RH accuracy
? 4-20mA, 0-5Vdc, RS-232/485
? CE and ROHS certifications

JWSL-2 Temperature and Humidity Transmitter Performance Specifications

Power voltage	24VDC (18-30V)
Accuracy (25°C)	Temperature: ±0.5°C (0°C - 50°C) Humidity: ±3.0%RH

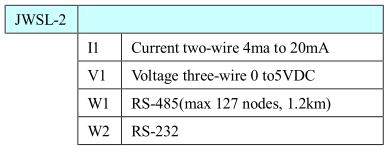

Output	Current two-wire 4ma to 20mA (Load <500Ω); Voltage 0-5VDC (Load >1KΩ) RS-485/RS-232
Response time	<15s (wind speed >1m/s)
Long-term stability	Temperature: <0.1°C/year, Humidity: <1%RH/year
Operating environment	-10°C ~ 60°C; 5%RH ~ 95%RH
Mounting dimension	84mm x 90mm x 35mm (White Color ABS)
