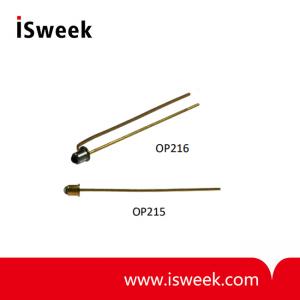

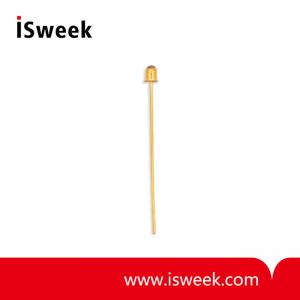

Hermetic Infrared Emitting Diode - OP215、OP216
Hermetically sealed package
Mechanically and spectrally matched to other OPTEK devices
Designed for direct mount to PCBoard
Enhanced temperature range
Excellent coupling efficiency
- Model Number: OP215、OP216
- Data Sheet:
- Quantity:
- - +
Product Specification
Description:
Each OP215 and OP216 device is an 890 nm gallium aluminum arsenide infrared emitting diode (GaAlAs), mounted in a hermetically sealed “"pig tale”package with an enhanced temperature range and a narrow irradiance pattern that provides high on-axis intensity for excellent coupling efficiency.These devices offer significantly higher power output than GaAs at equivalent drive currents and have a wavelength that is matched to silicon’s peak response. Their small package size permits high device density mounting.
The OP216A device provide an additional mounting tab connected to the Cathode/Case.
these LEDs are mechanically and spectrally matched to the OP300 series, 0P516,OP600 series and OP640 series devices.
Features:
- Hermetically sealed package
- Mechanically and spectrally matched to other OPTEK devices
- Designed for direct mount to PCBoard
- Enhanced temperature range
- Excellent coupling efficiency
Applications:
- Non-contact reflective object sensor.
- Assembly line automation
- Machine automation
- Machine safety
- End of travel sensor
- Door sensor

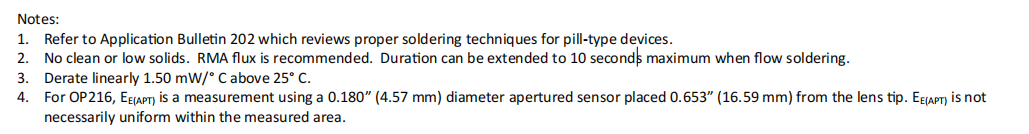

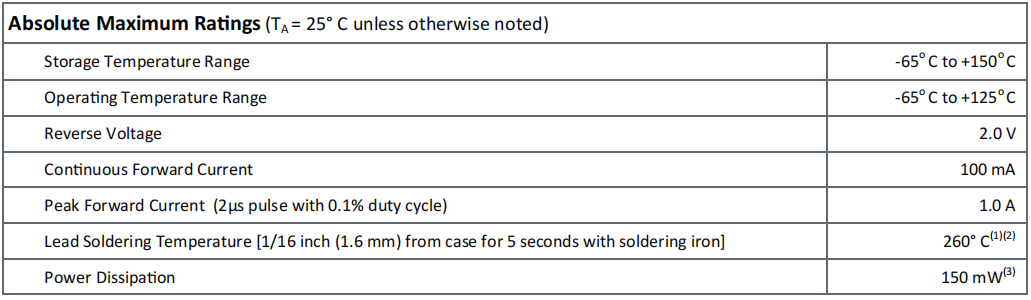

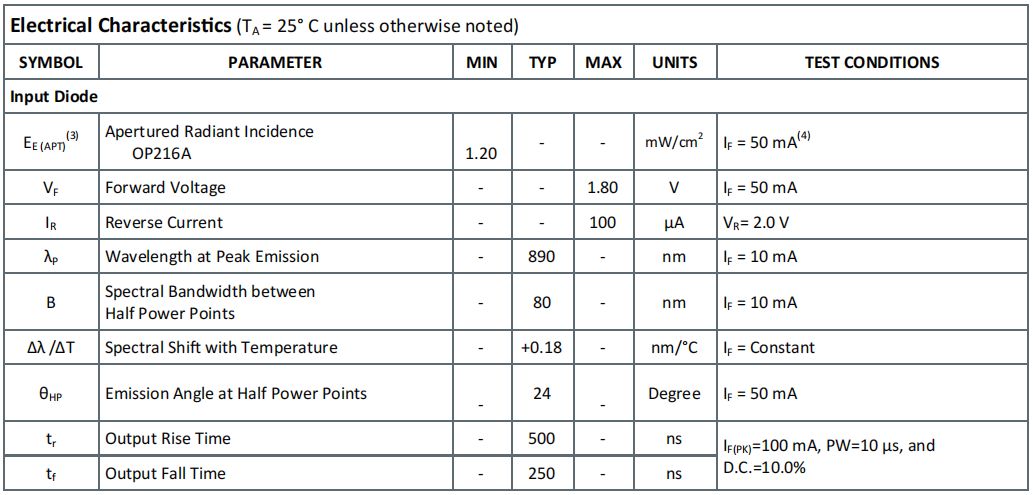

Electrical Specifications:
