High-Reliability CO2 Sensor Module for IAQ, Greenhouse, HVAC - ZG09

? CO2 Measurement Range: 0~10,000ppm/1.0%?
? Operating temperature: 0~50°C (32~122°F)
? Operating humidity: 0-95% RH, non-condensing
? CO2 Accuracy: ±50ppm ±3% of reading
? Repeatibility: ±20ppm
? Resolution: 1ppm
? Response Time: About 1 min

  • Model Number: ZG09
  • Data Sheet: Date Sheet File
Quantity:
- +

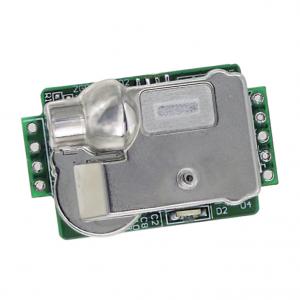

  • High-Reliability CO2 Sensor Module for IAQ, Greenhouse, HVAC

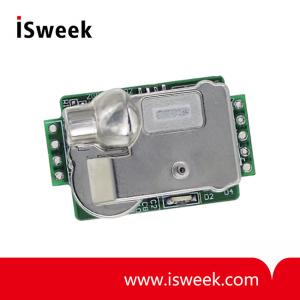

  • High-Reliability CO2 Sensor Module for IAQ, Greenhouse, HVAC
Mouse over image to zoom
Share:

Product Specification

High-Reliability CO2 Module For Various Applications IAQ, Greenhouse, HVAC
? Use Dual Beam NDIR technology to improve the long term stability
? Cost - effective CO2 monitors made with IR-SOC technology
? Small Module for OEM

ZG09 High-Reliability CO2 Sensor Module Application:
? IAQ (Indoor air quality)
? Greenhouse
? HVAC.DCV (Demand Control Ventilation)

ZG09 High-Reliability CO2 Sensor Module Specification

Method - Dual Beam NDIR
Sample Method
 Diffusion or flow through (50~200ml/min)
Operating conditions
 0~50°C (32~122°F), 0-95% RH, non-condensing
Storage conditions
 -20~60°C (-4~140°F), 0-95% RH, non-condensing
Performance - CO2 Channel
Measurement Range
 0~10,000ppm/1.0%
CO2 Accuracy
 ±50ppm ±3% of reading
Repeatibility
 ±20ppm
Resolution
 1ppm
Pressure Dependence
 0.13% of reading per mm Hg
Response Time
 About 1 min
Warm Up Time
 30 sec. @ 25°C
Power Supply and Output
Power Supply
 5.0 VDC ±0.5 supply, Ripple and Noise (mVp-p) 200
Power Consumption
 Max. (0.8 ms shot capture) <190mA, Avg. <34mA
Output Interface
 9pin Connector, Space=2.54mm
Digital Output
 UART, I2C, PWM, DAC
