High Voltage Insulation Tester - MS5215

Product Specification

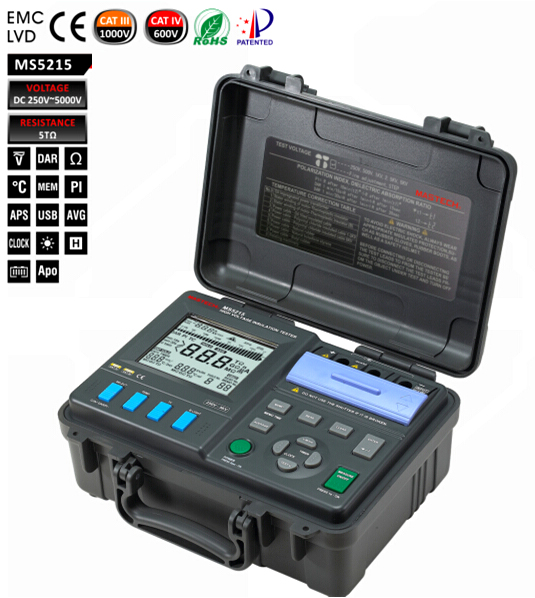

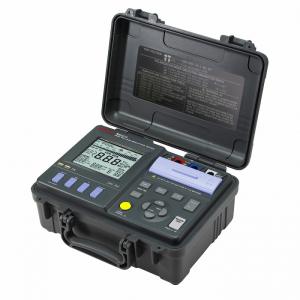

MS5215 - High Voltage Insulation Tester

This meter is an insulation resistance tester with broad range of measurement which can be applied to various situations from low-voltage to high-voltage measurements. For example, measuring the insulation of high-voltage receiving station and transformer substation, as well as the electric motor and cable.

MS5215 High Voltage Insulation Tester Features
? Broad Range of Testing Voltage:
  - Testing voltages with broad range can be generated (from 250 V to 5 KV).
  - Testing voltage can be preset as 250 V, 500 V, 1 KV, 2.5 KV, or 5 KV, or as a voltage increasing or decreasing in steps of 25 V or 100 V.
? Insulation Diagnosis:
  - PI and DAR can be automatically calculated and displayed;
  - Step-voltage measurements and temperature compensation is carried out.
? Large Storage Memory:
  - Up to 100 manually tested data and 10 groups of log-test data can be saved.
  - Test data can be read on LCD, or uploaded to PC
? Clear Display:
  - Large-screen display. Test result is displayed with indication through a graduation bar.
  - LCD screen is backlit, which is suitable for viewing when it is dark.
? PC Communication:
  - The meter is equipped with a USB interface, through which the saved test data can be uploaded to a PC for further table/figure making and report generating with convenience.
? Robust and Durable:
  - With a compact structure, the tester is robust, durable and portable.
? Powered by Batteries:
  - With a selection switch, the tester can be powered by an alkaline battery.
  - This tester can be continuously operated for a longer period of time than similar meters if a LR14 alkaline battery is used.

MS5215 High Voltage Insulation Tester General Specifications
? Power Supply: 6 x Lr14(2#) Batteries, or 6 x 1.2V AA Batteries (Charger: Input Voltage 100V~240V)
? Product Size: 284mm x 230mm x 125mm / 11.2" x 9.1" x 4.9"
? Product Weight: 2426g/5.34lb
? Certificate: CE / ETL / RoHS
? Safety Rating: CAT III 1000V CAT IV 600V

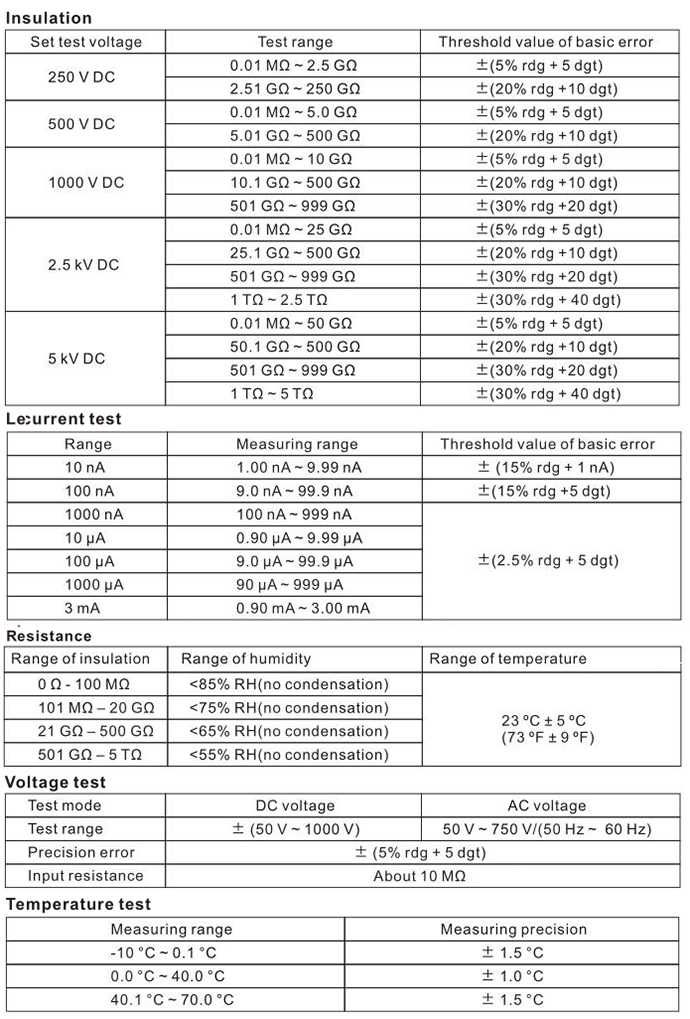

MS5215 High Voltage Insulation Tester Test parameters
