Honeywell HIH-4602-L Series Humidity Sensors - HIH-4602-L
Near linear voltage output vs %RH
Laser-trimmed interchangeability
Enhanced accuracy, fast response
Chemically resistant
Stable, low drift performance
Built-in static protection
TO-5 can
- Model Number: HIH-4602-L
- Data Sheet:
- Quantity:
- - +
Product Specification
DESCRIPTION

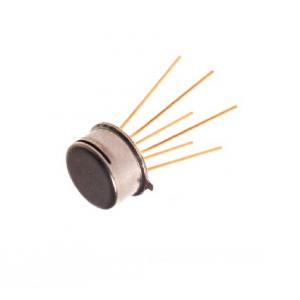

HIH-4602-L Series Relative Humidity (RH) sensors are designed to deliver RH sensing in a rugged, low-cost slotted TO-5 can.
The laser-trimmed, thermoset polymer capacitive sensing elements have on-chip integrated signal conditioning, helping to reduce product development times.
A typical current draw of only 200 μA allows use in batterypowered systems.
HIH-4602-L-CP sensors include a calibration and data printout to allow individually matched downstream electronics and ±3.5 %RH total accuracy.
FEATURES
? Near linear voltage output vs %RH
? Laser-trimmed interchangeability
? Enhanced accuracy, fast response
? Chemically resistant
? Stable, low drift performance
? Built-in static protection
? TO-5 can
POTENTIAL APPLICATIONS
? Refrigeration
? Drying
? Meteorology
? Battery-powered systems
? OEM (Original Equipment Manufacturer) assemblies

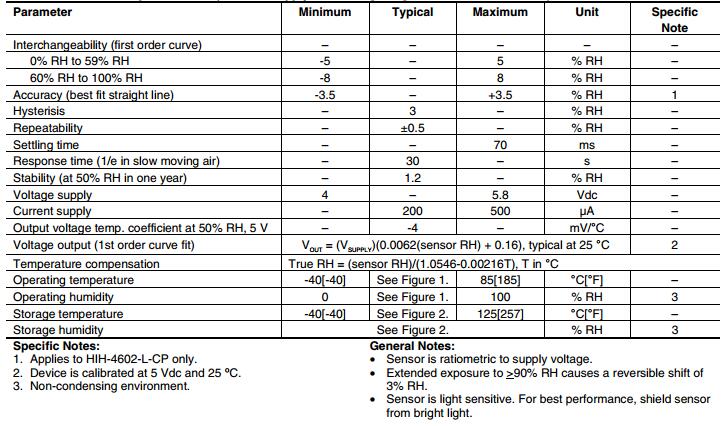

Performance Specifications (At 5 Vdc supply and 25 oC [77 oF] unless otherwise noted.)
