Honeywell Integrated Relative Humidity Sensor - HIH-4000

Product Specification

HIH-4000 Series Humidity Sensor

The HIH-4000 Series Humidity Sensors are designed specifically for high volume OEM (Original Equipment Manufacturer) users. Direct input to a controller or other device is made possible by this sensor’s linear voltage output. With a typical current draw of only 200 μA, the HIH-4000 Series is often ideally suited for low drain, battery operated systems. Tight sensor interchangeability reduces or eliminates OEM production calibration costs. Individual sensor calibration data is available.

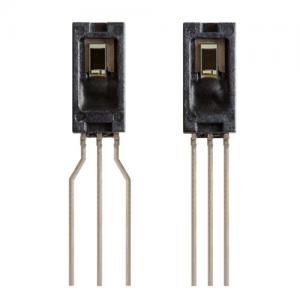

The HIH-4000 Series delivers instrumentation-quality RH (Relative Humidity) sensing performance in a competitively priced, solderable SIP (Single In-line Package). Available in two lead spacing configurations, the RH sensor is a laser trimmed, thermoset polymer capacitive sensing element with on-chip integrated signal conditioning. The sensing element's multilayer construction provides excellent resistance to most application hazards such as wetting, dust, dirt, oils and common environmental chemicals.

HIH-4000 Series Humidity Sensors  Specifications:
1) Response time: 15S
2) Voltage supply: 4- 5.8V
3) Voltage output: Vout=0.00003(sensor RH)2+0.0281(sensor RH)+0.820, (typical @ 25 oC)
4) Operating temperature: -40 ~ 85°C (-40 ~ 185°F)

HIH-4000 Series Humidity Sensors  Features:
? Molded thermoset plastic housing
? Linear voltage output vs %RH
? Laser trimmed interchangeability
? Low power design
? High accuracy
? Fast response time
? Stable, low drift performance
? Chemically resistant

HIH-4000 Series Humidity Sensors  Typical Applications:
? Refrigeration equipment
? HVAC equipment
? Medical equipment
? Drying
? Metrology
? Battery-powered systems
? OEM assemblies

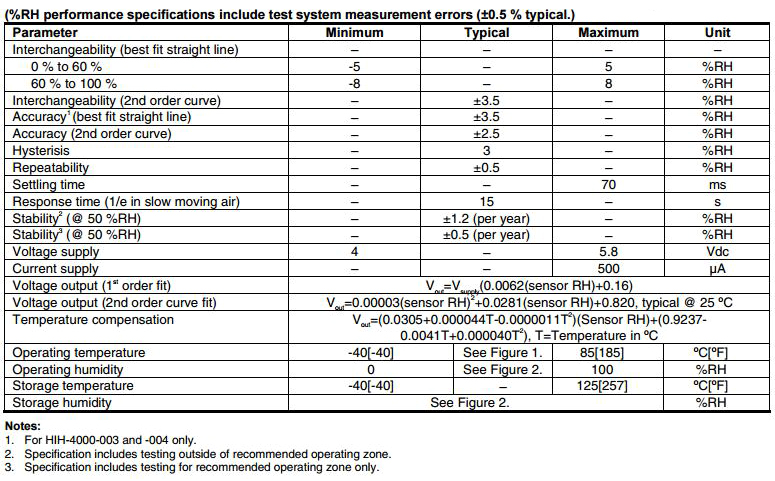

HIH-4000 Series Humidity Sensors PERFORMANCE SPECIFICATIONS (At 5 Vdc supply and 25 oC [77 oF] unless otherwise noted.)
