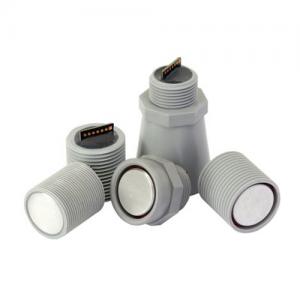

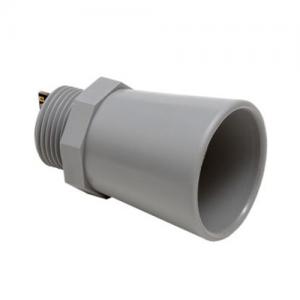

HRXL-MaxSonar-WR Series Ultrasonic Sensor MB7360, MB7363, MB7366, MB7369, MB7380 - MB7383, MB7386, MB7389

Product Specification

HRXL-MaxSonar-WR Series
High Resolution, Precision, IP67 Weather Resistant, Ultrasonic Range Finder
MB7360, MB7363, MB7366, MB7367, MB7369, MB7380, MB7383, MB7386, MB7387, MB7389

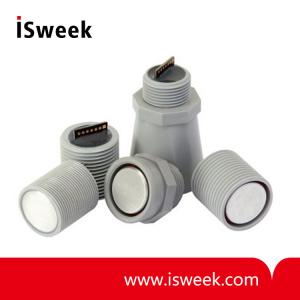

HRXL-MaxSonar-WR Series Ultrasonic Sensor Product Description
The HRXL-MaxSonar-WR sensor line is a cost-effective solution for applications requiring precision range-finding, low-voltage operation, space saving, low-cost, and IP67 rating for weather resistance.

The HRXL-MaxSonar-WR sensor line provides high accuracy and high resolution ultrasonic proximity detection and ranging in air. This sensor line features 1-mm resolution, target-size and operating-voltage compensation for improved accuracy, superior rejection of outside noise sources, internal speed-of-sound temperature compensation and optional external speed-of-sound temperature compensation. The HRXL-MaxSonar-WR/WRC models are available in 5-meter or 10-meter models. This ultrasonic sensor detects objects from 1-mm and ranges to objects from 30-cm to maximum range. Objects closer than 30-cm are typically reported as 30-cm. The interface output formats are pulse width, analog voltage, and digital serial in either RS232 (MB7360 series) or TTL (MB7380 series). Factory calibration is standard.

Precision Ultrasonic Range Sensing
? Range-finding at a fraction of the cost of other precision rangefinders
? Reading-to-reading stability of 1-mm at 1-meter is typical
? Accuracy is factory-matched providing a typical accuracy of 1% or better
? Internal temperature compensation is standard and optional external temperature compensation
? Determines range to largest object (MB7369 , MB7389)
? Determines range to first detectable object  (MB7360, MB7363, MB7366, MB7367, MB7380, MB7383, MB7386, MB7387)
? Excellent clutter rejection
? Additional chemical resistance available

Very Low Power Requirements
? Fast first reading after power-up eases battery requirements
? Wide, low supply voltage of 2.7V to 5.5V requirements eases battery powered design
? Low current draw reduces current drain for battery operation
? Very low-power rangerfinder, excellent for multiple sensor or battery based systems

Easy to Use Component Module
? Gracefully handles other ultrasonic sensors
? Stable and reliable range readings and excellent noise rejection make the sensor easy to use for most users
? Easy to use interface with distance provided in a variety of outputs
? Target size compensation provides greater consistency and accuracy
? Sensor automatically handles acoustic noise
? Calibrated sensor eliminates most sensor to sensor variations

Range Outputs
? Pulse width, 1uS/mm resolution
? Analog Voltage, 5-mm resolution (5-meter sensors)
? Analog Voltage, 10-mm resolution (10-meter sensors)
? Serial, 1-mm resolution
? Available in RS232 (MB7360 series) or TTL (MB7380 series)

HRXL-MaxSonar-WR Series Ultrasonic Sensor General Characteristics
? Low cost ultrasonic rangefinder
? Detection out to 5-meters or 10-meters
? Resolution of 1-mm
? Distance sensor from 30-cm to 5-meters or 50-cm to 10-meters based on model
? Excellent Mean Time Between Failure (MTBF)
? Triggered operation yields real-time range data
? Free run operation with superior noise rejection
? Operating temperature range from -40°C to +65°C
? Operating voltage of 2.7V to 5.5V
? Nominal current draw of 2.3mA (peak ~49mA) at 3.3V, and 3.1mA (peak ~98mA) at 5V
? IP67 Rated

HRXL-MaxSonar-WR Series Ultrasonic Sensor Applications & Uses
? Tank level measurement (MB7369 or MB7389)
? Weather station monitoring
? Bin level measurement
? Proximity zone detection
? People detection
? Robot ranging sensor
? Long range object detection
? Environments with acoustic and electrical noise
? Height monitors
? Auto sizing
? Box dimensions
? Automated factory systems

HRXL-MaxSonar-WR Series Ultrasonic Sensor Part Numbers

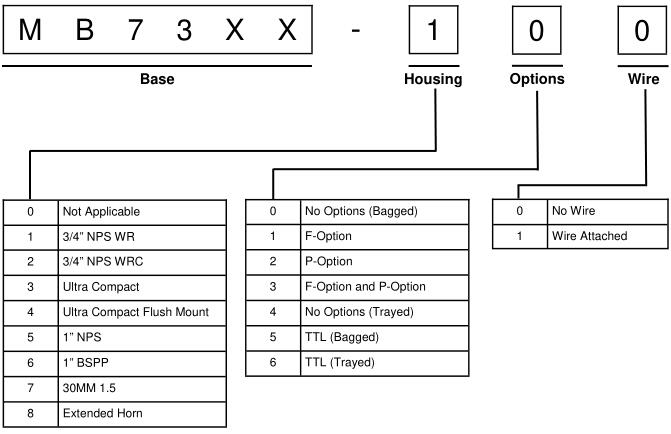

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

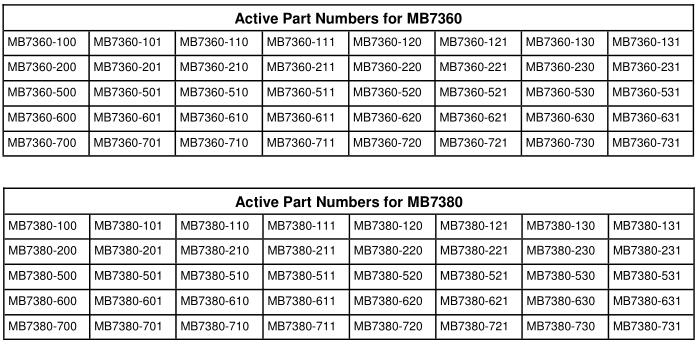

The following tables display all of the active and valid part numbers for these products.

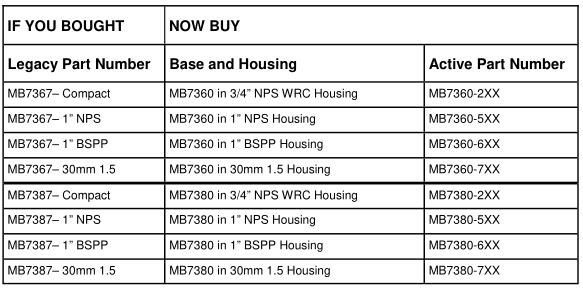

The legacy part numbers MB7367 and MB7387 are now contained within MB7360 and MB7380 which are the base for all housing options on these products. To select a product with a legacy part number, select the desired housing option on the product with the appropriate base. Please review the following table for more information.

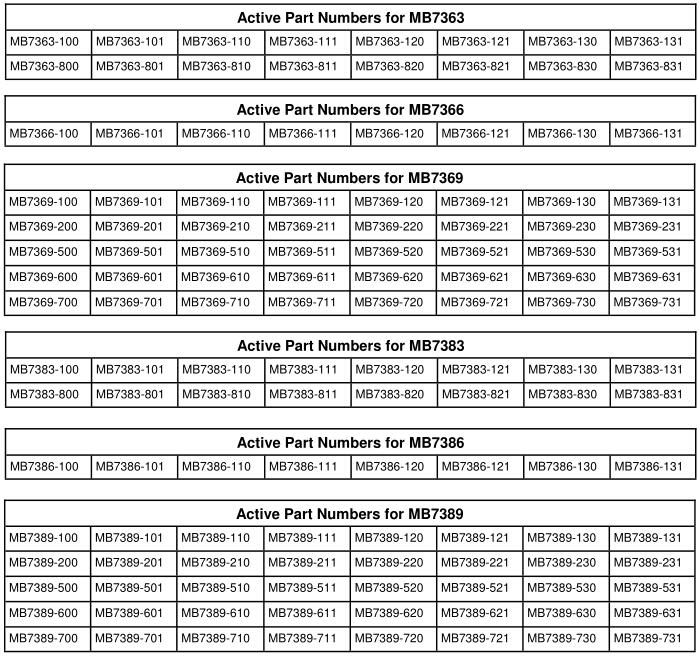

The following tables display all of the active and valid part numbers for these products.
