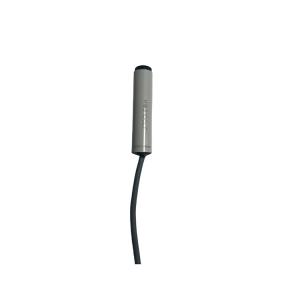

Humidity sensor OEM Applications - HW2100LF
Full interchange ability
High reliability and long term stability
Water proof design(IP67)
Very low temperature dependence
Suitable for 3 to10Vdc supply voltage
- Model Number: HW2100LF
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
Humidity sensor OEM Applications HW2100LF summary：
HW2100LF is APOLLOSENSE's proprietary brand humidity sensor,The core components are developed using Samyoung's humidity sensitive capacitors from South Korea. It is a dedicated humidity sensor designed specifically for OEM applications, which can provide reliable and accurate measurements.
Humidity sensor OEM Applications HW2100LF Specifications：
1、Small size product
2、Product free from Lead,Cr(6+),Cd and Hg
3、Humidity calibrated within+/-3%@55%RH

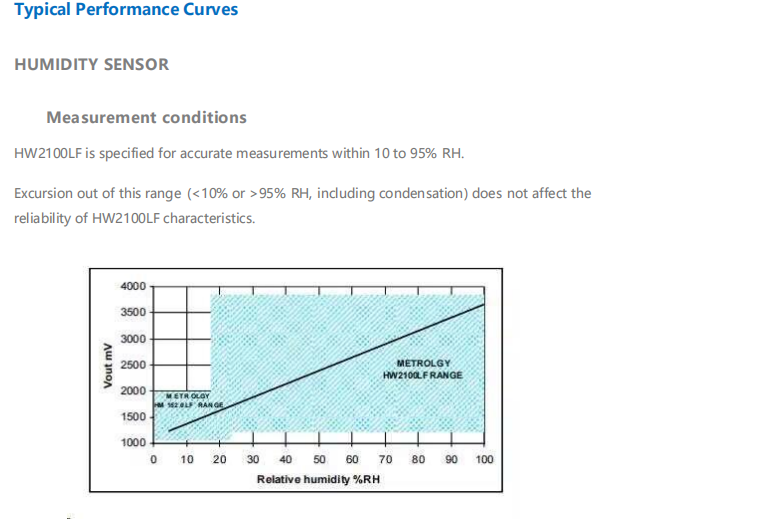

4、Typical 1 to 3.6 Volt DC output for 0 to 100%RH at 5Vdc supply
5、Ratiometric to voltage supply from 4.75Vdc to 5Vdc
Humidity sensor OEM Applications HW2100LF Features：
Full interchange ability
High reliability and long term stability
Water proof design(IP67)
Very low temperature dependence
Suitable for 3 to10Vdc supply voltage
Humidity sensor OEM Applications HW2100LF Applications：
Industrial
Process control
Inverter
intelligent building
Incubator

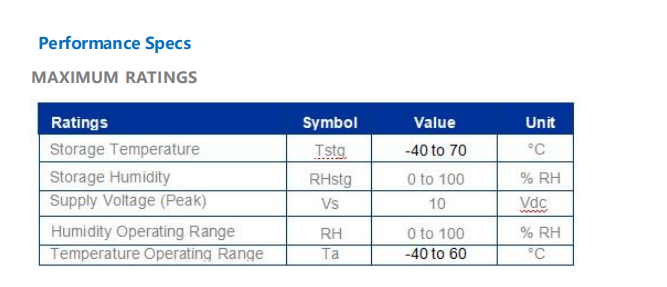

Humidity sensor OEM Applications HW2100LF Performance Specs：
