In-line Mass Flow Meters - MF Series

Product Specification

MF Series Mass Flow Meters General description

MF series mass flow meters are designed for all purpose industrial gas metering and control. The meters provide direct mass flow information as well as well-designed user friendlyinterfaces (RS485/4~20mA/pulse etc.) for data process.  The series cover the DN rangefrom 25 to 100 mm with an accuracy of ±(1.5+0.5FS)% or better depending on therequests. The meters can work at an environment of -20 to 60°C and pressure up to 1.5MPa. The package ensures hygienic safety and can be used for beverage and food industrialgas process such as CO2. Other applications include special gas monitoring in steel process,hydrogen flow control in chemical industry, process gases (oxygen, nitrogen, helium, compressed air or argon) monitoring in manufacture, to name a few.

MF Series Mass Flow Meters Features and Applications

- Directly sense mass flow using thermal mass flow principle
- Proprietary MEMS sensor design for better reliability
- Standard 8 ~ 24 V power supply
- Low pressure loss reducing energy cost
- Industrial standard communication ports for easy networking and remote control
- Large data storage capability for data log and analysis
- Hazard  proof (Ex ia IIC T4) or Class I Division I, (Zone 0) Groups A-D

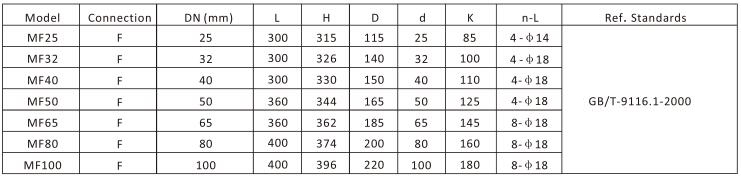

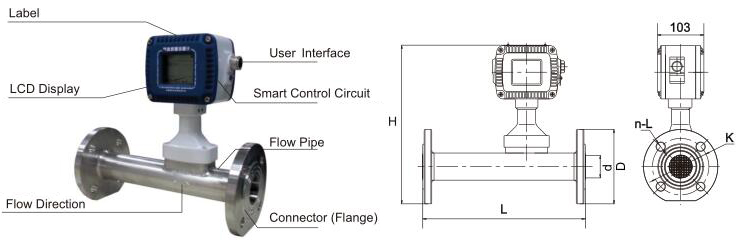

MF Series Mass Flow Meters Mechanical Dimensions

MF Series Mass Flow Meters Specifications

Note:the above parameters are applicable at 20℃ and 101.325 kPa

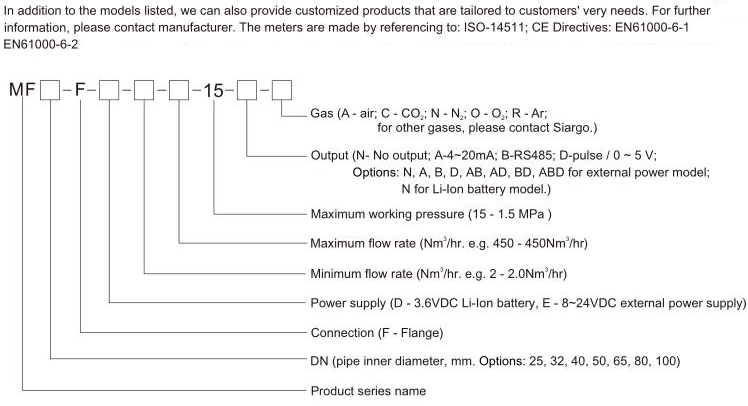

MF Series Mass Flow Meters Production selection
