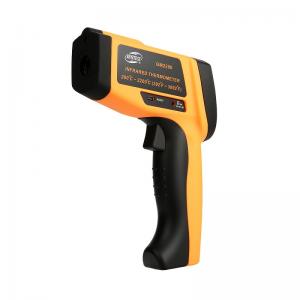

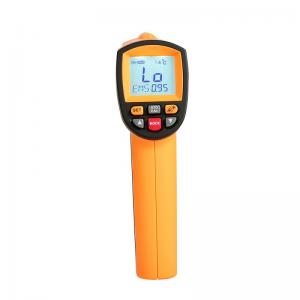

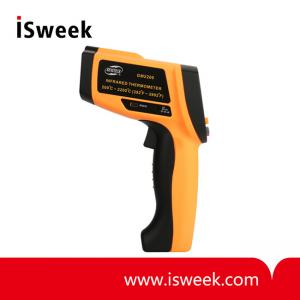

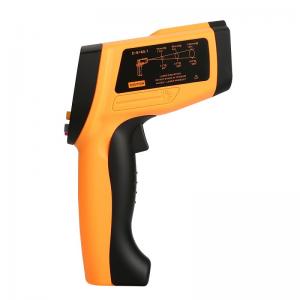

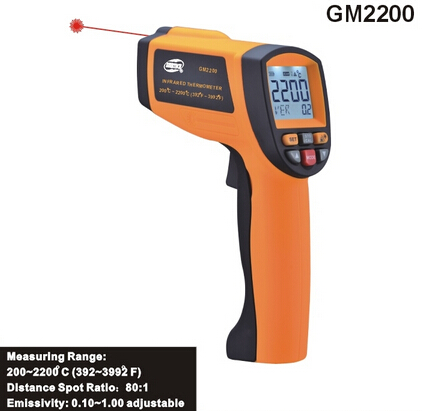

Infrared Thermometer - GM2200

? Temperature range: 200 ~ 2200℃ ( 392~3992℉)
? Repeatability: ±1% or ±1℃
? Distance Spot Ratio: 80:1
? Emissivity: 0.10-1.00 preset
? Resolution?: 0.1℃/℉?
? Response Time: 500ms
? Wavelength: 900-1700nm
? Operating Temperature: 0 ~40℃ (32 ~ 104℉)?
? Operating Humidity: 10~80%RH non-condensing

Model Number: GM2200
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GM2200 Infrared Thermometer Introduction
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-to-reach objects without contact safely and quickly.

This unit consist of Optics, photoelectric Sensor, Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

GM2200 Infrared Thermometer Function
? MAX/MIN/AVG/DIF reading
? High/Low Temperature alarm setup
? 4000 Data Store/Recall Function
? ℃/℉ Selection
? Data Hold function
? Laser Target Pointer selection
? Backlight ON/OFF selection
? RS232 Interface & Analysis software
? Auto Power Shut Off
? Low power indication

GM2200 Infrared Thermometer Specification

Temperature range	200 ~ 2200℃ ( 392~3992℉)
Accuracy	200℃(392℉) ~ 450℃(842℉): ±2℃ or ±2% 450℃(842℉) ~ 1100℃(2012℉): ±3℃ or ±3% 1100℃(2012℉) ~ 2200℃(3992℉): ±4℃ or ±3% whichever is bigger
Repeatability	±1% or ±1℃
Distance Spot Ratio	80:1
Emissivity	0.10-1.00 preset
Resolution	0.1℃/℉
Response Time	500ms
Wavelength	900-1700nm
Power supply	9V battery
Weight	312g (Including battery)
Dimension	20015559mm
Packing Method	Gift Box+PP Box
Operating Temperature	0 ~40℃ (32 ~ 104℉)
Operating Humidity	10~80%RH non-condensing
Storage Temperature	-20 ~ 60℃ (-4~140℉), ≤85, without battery
