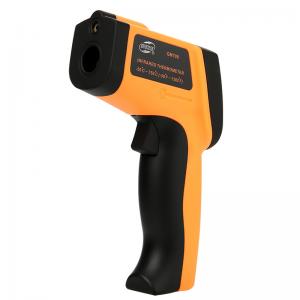

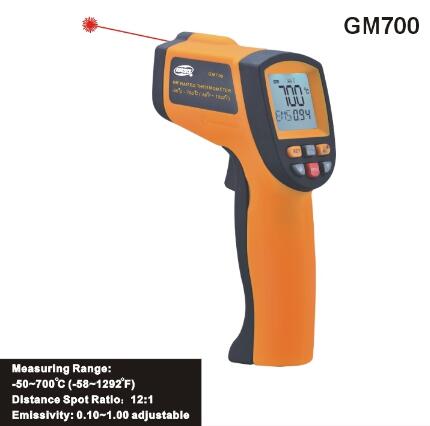

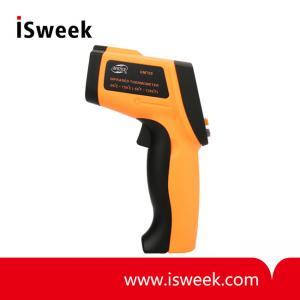

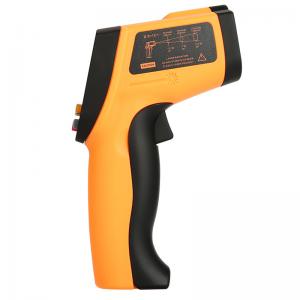

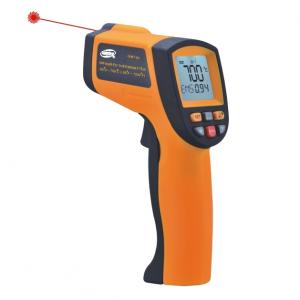

Infrared Thermometer - GM700

? Temperature range: -50 ~ 700°C (-58 ~ 1292°F)
? Accuracy: ±1.5% or ±1.5°C
? Repeatability: ±1% or ±1°C
? Distance Spot Ratio: 12:1
? Emissivity: 0.1~1.00 adjustable
? Resolution: 0.1°C or 0.1°F
? Response Time: 500ms
? Wavelength: 8-14μm

  • Model Number: GM700
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Infrared Thermometer
  • Infrared Thermometer
  • Infrared Thermometer
  • Infrared Thermometer
  • Infrared Thermometer
Mouse over image to zoom
Share:

Product Specification

GM700?Infrared Thermometer?Description
This GM700?infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-toreach objects without contact safely and quickly.

This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.

GM700?Infrared Thermometer?Specification

Temperature range
 -50 ~ 700°C?(-58 ~ 1292°F)
Accuracy
 0°C~900°C?(32°F~1292°F): ±1.5°C?(±2.7°F)?or ±1.5%
-50°C~0°C?(-58°F~32°F): ?±3°C?(±5°F)
Whichever is greater
Resolution
 0.1°C?or 0.1°F
Repeatability
 1% of reading or 1°C
Response time
 500 mSec, 95% response
Spectral response
 8-14 um
Emissivity
 0.10~1.00 Adjustable (0.95 Preset)
Distance to Spot size
 12:1
Operating Temperature
 0 ~40°C?(32 ~ 104°F)
Operating Humidity
 10~95%RH non-condensing,?up to 30°C(86°F)
Storage Temperature
 -20 ~ 60°C?(-4~140°F)
Power
 9V Alkaline or NiCd battery
Typical battery life (Alkaline)
 Non-laser mode: 22 hrs;
Laser models: 12 hrs
Weight
 222g
Dimension 111 x 50 x 172mm
