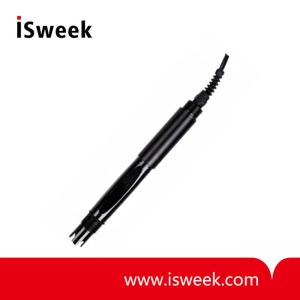

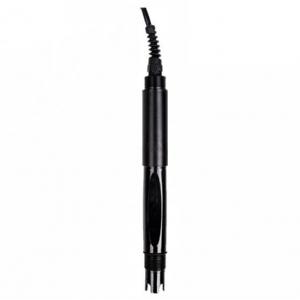

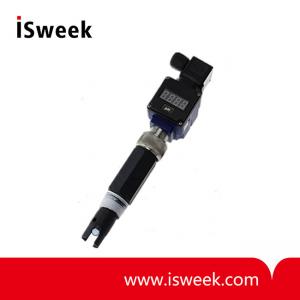

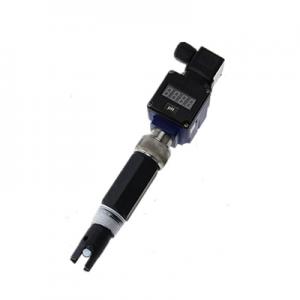

Integrated PH / ORP Sensor - PHG-202/203 ORP-202/203
? Measuring range: 0 ~ 14pH, -1500 ~ 1500mV
? Resolution: 0.01pH, 1mV
? Accuracy: ±0.1pH, ±3mV
? Installation: 3/4" NPTthread
? Protection class: IP65 / IP68
- Model Number: PHG-202/203 ORP-202/203
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
PHG-200/ORP-200 Integrated PH / ORP Sensor Description
This product is one-PH / ORP transmitter, protection class IP65 / IP68, can be installed directly into the formula for all need to measure pH / ORP occasions, such as water treatment, aquaculture, marine environment monitoring, and other industries.
PHG-200/ORP-200 Integrated PH / ORP Sensor Technical Specifications
|
Model |
PHG-200 |
ORP-200 |
|
Measuring range |
0 ~ 14pH |
-1500 ~ 1500mV |
|
Resolution |
0.01pH |
1mV |
|
Accuracy |
±0.1pH |
±3mV |
|
Power supply |
PHG-202: 12VDC~24VDC ±10%
PHG-203: 24VDC±10%
|
ORP-202: 12VDC~24VDC ±10%
ORP-203: 24VDC±10%
|
|
Output signal |
PHG-202: Rs485(Modbus/RTU)
PHG-203: 4 ~ 20mA Two wire isolation (signal)
|
ORP-202: Rs485(Modbus/RTU)
ORP-203: 4 ~ 20mA Two wire isolation (signal)
|
|
Installation |
3/4" NPTthread |
|
