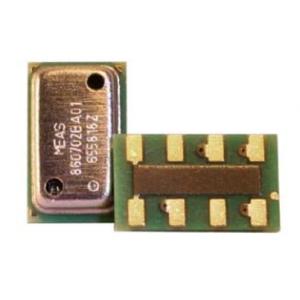

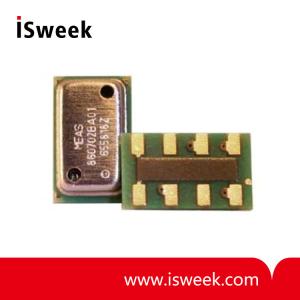

Integrated Pressure, Humidity and Temperature (PHT) Sensor - MS8607-02BA01

Product Specification

MS8607-02BA01
PHT Combination Sensor

MS8607-02BA01 PHT Combination Sensor Specifications
? Integrated pressure, humidity and temperature sensor
? QFN package 5 x 3 x 1 mm3
? Operating range: 10 to 2000 mbar, 0%RH to 100%RH, -40 to 85 °C
? High-resolution module: 0.016 mbar, 0.04%RH, 0.01°C
? Supply voltage: 1.5 to 3.6 V
? Fully factory calibrated sensor
? I2C interface

MS8607-02BA01 PHT Combination Sensor Description
The MS8607 is the novel digital combination sensor of MEAS providing 3 environmental physical measurements all-in-one: pressure, humidity and temperature (PHT). This product is optimal for applications in which key requirements such as ultra low power consumption, high PHT accuracy and compactness are critical. High pressure resolution combined with high PHT linearity makes the MS8607 an ideal candidate for environmental monitoring and altimeter in smart phones and tablet PC, as well as PHT applications such as HVAC and weather stations. This new sensor module generation is based on leading MEMS technologies and latest benefits from Measurement Specialties proven experience and know-how in high volume manufacturing of sensor modules, which has been widely used for over a decade.

MS8607-02BA01 PHT Combination Sensor Field of Applications
? Smart phones and Tablet PCs
? HVAC applications
? Weather station
? Printers
? Home Appliance and humidifiers

MS8607-02BA01 PHT Combination Sensor Technical Data
