Intelligent Infrared Carbon Dioxide Module - MH-Z14A
? Chamber is gold plated, water-proof and anti-corrosion
? High sensitivity, low power consumption
? Good stability
? Temperature compensation, excellent linear output
? Multiple output modes: UART, DAC, PWM
? Long lifespan
? Anti-water vapor interference, anti-poisoning
- Model Number: MH-Z14A
- Data Sheet:
- Quantity:
- - +
Product Specification
Principle Introduction:
MH-Z14A NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has digital output, analog voltage output, and PWM output. This commons type infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.
Main Features：
? Chamber is gold plated, water-proof and anti-corrosion
? High sensitivity, low power consumption
? Good stability
? Temperature compensation, excellent linear output
? Multiple output modes: UART, DAC, PWM
? Long lifespan
? Anti-water vapor interference, anti-poisoning
Applications :
? HVAC refrigeration
? Air cleaner device
? Indoor air quality monitoring
? Smart home
? Ventilation system
? School

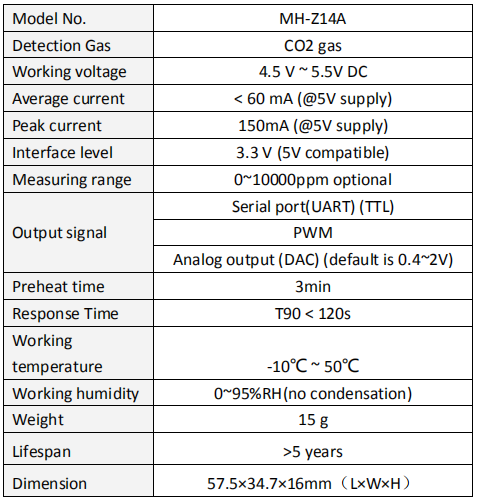

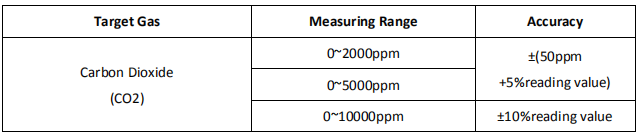

Main technical parameters：
Tips:For more parameter information, please refer to the latest manual provided by salesman.
