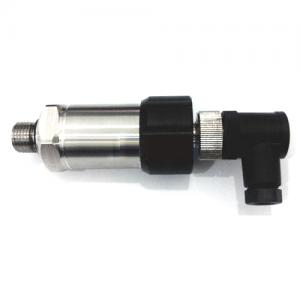

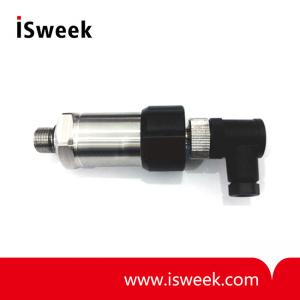

Intelligent Pressure Switch - JYK-K01

? Measuring range: any range within 0 - 40MPa
? Power supply: DC 24V (12V～32V)
? Medium temperature: -20°C～80°C
? Environment temperature: -20°C～60°C
? Response time: ≤ 50ms
? Repeatability: ± 0.2％F.S
? Long-term stability: ± 0.5％F.S/y
? Nonlinear: ± 0.2％F.S

Model Number: JYK-K01

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

JYK-K01 Intelligent Pressure Switch Introduction
It can widely used in instrumentation engineering, pump control, tank monitoring, liquid level control, filter clogging, monitoring industry, automobile industry, leakage monitoring, also can used in hydraulic and pneumatic occasions: such as machinery and equipment,process of pneumatic control.

JYK-K01 Intelligent Pressure Switch Characteristic
? Digital smart chip control, linear temperature compensation
? Dual use for gas and liquid, alarm point self monitoring
? Pressure upper and lower limit of multi-channel relays output signal controlling can be designed
? Pressure limit control points can be arbitrary set
? Resistance to electromagnetic interference design, suitable for bad environment
? Import diffusion silicon core, circuit reverse polarity protection, high reliability
? All stainless steel welded structure, small volume, light weight, easy installation

JYK-K01 Intelligent Pressure Switch Parameters

Measuring range	any range within 0 - 40MPa, 5kPa is the smallest range
Power supply	DC 24V (12V～32V)
Output	relay output
Accuracy class	grade 0.5
Medium temperature	-20°C～80°C
Environment temperature	-20°C～60°C
Response time	≤ 50ms
Rated load	1A/30V DV
Repeatability	± 0.2％F.S
Long-term stability	± 0.5％F.S/y
Nonlinear	± 0.2％F.S
Over load pressure	two times of range
Electrical connection	M12x1 air plug
Process connection	M20 x 1.5 and others
The external parts material	Ordinary stainless steel/316stainless steel
IP grade	IP 65
