IoLine Tris Compatible pH Electrodes - IoLine-TrisB

Product Specification

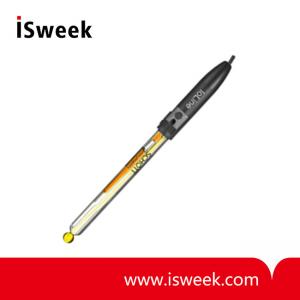

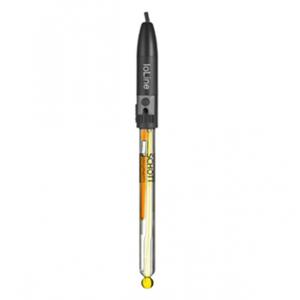

IoLine Tris Compatible pH Electrodes
Iodine glass pH electrodes for the most demanding applications

IoLine-TrisB IoLine Tris Compatible pH Electrodes Description
The IoLine Tris compatible pH electrodes use a patented three chamber system with an iodine reservoir in the iodine/iodide reference electrode. The standard hydrogen electrode has proven too difficult in practical use to gain more than a mere theoretical importance. The Ag/AgCl reference system, which is the most common reference system, can cause measuring instabilities originating from potential variations with changing temperature or reactions between silver ions and the measuring solution in the area of the diaphragm. IoLine pH electrodes, in contrast, have the advantage of a much lower temperature sensitivity and a metal ion free reference system.

IoLine-TrisB IoLine Tris Compatible pH Electrodes Features
? Unique iodine/iodide reference system
? Tris buffer compatible
? Exchangeable bridge electrolyte
? Integrated refill port
? Excellent for a wide range of applications

IoLine-TrisB IoLine Tris Compatible pH Electrodes Specifications
? pH Range: 0 to 14
? Temperature Range: 23 to +212°F (-5 to +100°C)
? Shaft: Glass
? Zero Point: pH = 7.00 ±0.25
? Reference System: iodine/iodide
? Type of Membrane Glass: A
