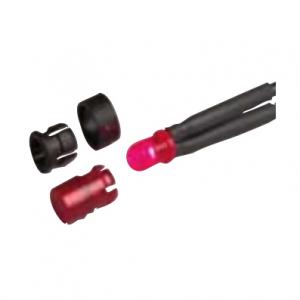

LED Panel Indicator - PH-25 Series

? 2 case sizes
? 2 types of LED indicators
? Indicating Range: 2 to 100 Amps(1-Wire Pass)
? Max. Continuous Current: 100 Amps
? Working Class: 600 Volts, 50-60 Hz

Model Number: PH-25 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

The Remote Electrical Current Indicators provide an effective method for remote monitoring of electrical current. The remote current sensing transformer is installed around the current-carrying wire and is connected directly to the LED panel indicator. When the current exceeds the turn-on point of the sensing transformer, the LED illuminates to indicate the presence of current. Two sizes of remote current sensing transformers are available for use with either one of two types of LED indicators. The panel indicators are available with either red, green, blue, white, yellow or amber LEDs.

PH-25 Series LED Panel Indicator Features
? 2 case sizes
? 2 types of LED indicators

PH-25 Series LED Panel Indicator Specifications
? Indicating Range: 2 to 100 Amps(1-Wire Pass)
? Max. Continuous Current: 100 Amps
? Working Class: 600 Volts, 50-60 Hz

PH-25 Series LED Panel Indicator Applications
? Indicate open heater elements
? Observe remote loads
? Indicate phase loss
? Monitor motor operation

PH-25 Series LED Panel Indicator PART NUMBERS

Part Number	LED Color	Model 18 Turn On	Model 19 Turn On
PH-25-A	Amber	3.0 AAC	2.5 AAC
PH-25-B	Blue	2.5 AAC	2.0 AAC
PH-25-G	Green	3.0 AAC	2.5 AAC
PH-25-R	Red	2.5 AAC	2.0 AAC
PH-25-W	White	2.5 AAC	2.0 AAC
PH-25-Y	Yellow	2.5 AAC	2.0 AAC
Model 19	Wire Mount Current Transformer, 7.4mm window
Model 18	Panel Mount Current Transformer, 14mm window
MB-18	Panel Mounting Bracket for Model 18
