Level sensor - DLM1
Level measurement range: 0-6 m (maximum cascade of 4 nodes to 6 m)?
Level resolution: 0.01 m, continuous liquid level?
Level accuracy: 0.05 m?
Range of temperature measurement: -70-150℃?
Temperature resolution: 0.1℃?
- Model Number: DLM1
- Data Sheet:
- Quantity:
- - +
Product Specification

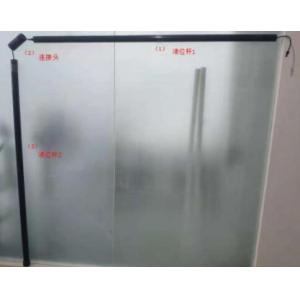

The deep water level sensor DLM 1 (Deep Liquid-level Meter) is a changing level sensor sensing continuous liquid level measured by the capacitive high frequency dielectric constant. Each node is 1.5 meters long and can be cascade through RS485, and each node output liquid level height and liquid level temperature information. Suitable for underground sewage, manhole cover water, river and other deep water level and temperature measurement. Taking the 3 m deep liquid level sensor as an example, the system is composed of liquid level rod 1, connector and liquid level rod 2, as shown in the figure below.
Function：
Level measurement range: 0-6 m (maximum cascade of 4 nodes to 6 m)
Level resolution: 0.01 m, continuous liquid level
Level accuracy: 0.05 m
Range of temperature measurement: -70-150℃
Temperature resolution: 0.1℃
Typical temperature accuracy: 0.5℃
Long-term working temperature: -40~85℃
sampling interval:≧50ms
Protection grade: chemical grade PVC-U, shell, waterproof IP68
Application：
Underground sewage
Cover water
River course
