Level shift - iML7276
2.6V to 5.5V Input Logic Level Range
-20V to 45V Output Voltage Range
19 Ch Level Shifter Support 12-CH CLK,3-CH LS_STV, VDDE/VDDO, LS_VGL,LS_LVGL
Protection Functions: UVLO, OTP, OCP
- Model Number: iML7276
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification

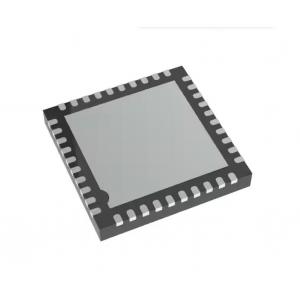

The iML7276 is a 19 channel high-voltage level-shifter application. The device converts logic level signals generated by the Timing Controller (TCON) to high level signals used by the display panel. With being available in a WQFN-40L 5x5 package, this device is suitable for GOP TFT-LCD panel.
Level shifter is designed for generating a high voltage signal to drive the TFT-LCD panel. The iML7276 includes 8 GOA input signal (CPV1 to CPV2, STV0, STV1A, STV1B, LC, TERMINATE, DIS_SENSE), 19- CH GOA output signal (12CLK, LS_STV0, LS_STV1A, LS_STV1B, VDDE, VDDO, LS_VGL and LS_LVGL. It also integrates reset function. As long as DVDD reaches discharge level, all channels will be pulled to VGH.
FEATURES：
2.6V to 5.5V Input Logic Level Range
-20V to 45V Output Voltage Range
19 Ch Level Shifter Support 12-CH CLK,3-CH LS_STV, VDDE/VDDO, LS_VGL,LS_LVGL
Protection Functions: UVLO, OTP, OCP
Support 2 IN, 4/6/8/10/12 CLK OUT
CLK Charge Sharing & GPM Function
I2C Interface
Power Off Discharge Option
RoHS Compliant and Halogen Free
APPLICATIONS：
GOA TFT-LCD Panel
