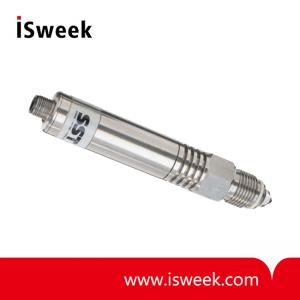

LLHT Glass Tip Range of Liquid Level Switches - LLHT Series

? Liquid level switches that can detect almost any liquid type; oil or water based
? Suitable for harsh environments; robust Stainless Steel housing and crystal glass tip
? Choice of terminal connections

  • Model Number: LLHT Series
  • Data Sheet: Date Sheet File
Quantity:
- +
  • LLHT Glass Tip Range of Liquid Level Switches
Mouse over image to zoom
Share:

Product Specification

FEATURES

? Liquid level switches that can detect almost any liquid type; oil or water based

? Suitable for harsh environments; robust Stainless Steel housing and crystal glass tip

? Choice of terminal connections



BENEFITS

? Suitable for use within aggressive environments

? Extreme temperatures

? LED output indication



TECHNICAL SPECIFICATIONS

Supply voltage (Vs)

12VDC to 30VDC

Supply current (ls)

25mA max.

Output sink and source current (lout)

200mA max.

Operating temperatures

LLHT187: -25℃ to +100℃

LLHT287: -25℃ to +140℃

Storage temperatures

-25℃ to +80℃

Housing material

Stainless Steel with

Simax crystal glass tipa

Sensor termination

M12 Brad Harrison connector

or PUR 3x0.25mm2, 2m cable

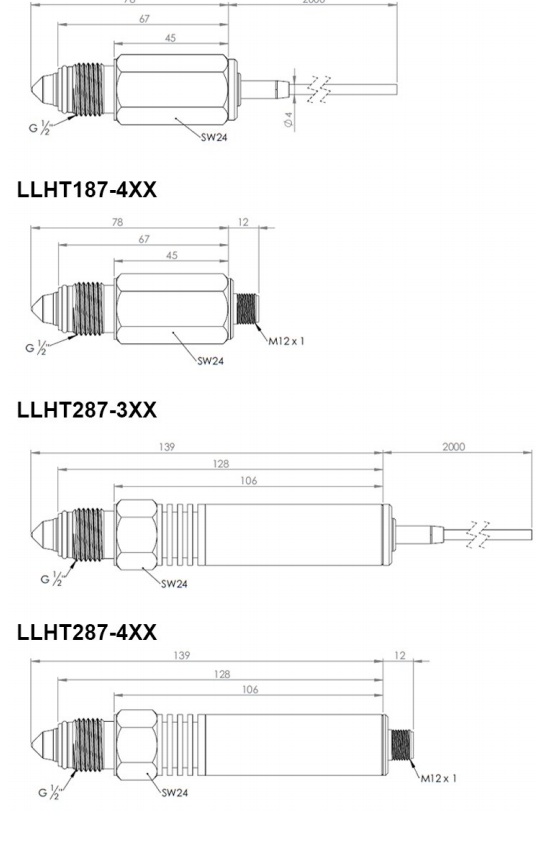

OUTLINE DRAWING

All dimensions shown in mm. Tolerances = ±1mm.
