Low Cost Industrial Pressure Transducer - MSP300

Product Specification

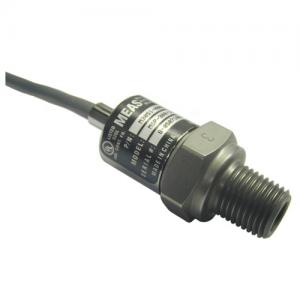

MSP300
Pressure Transducer

MSP300 Pressure Sensor Specifications
? Analog Output or 14-Bit Digital Pressure with 11-Bit Temperature Output
? One Piece Stainless Steel Construction
? Low Cost
? 17-4PH or 316L Stainless Steel
? Customizable

MSP300 Pressure Sensor Description:
The MSP 300 series pressure transducers set a new price performance standard for low cost, high volume, commercial and industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.

The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standard version includes a 1/4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no o-rings, welds or organics exposed to the pressure media.

The durability is excellent. Measurement Specialties proprietary Microfused? technology, derived from demanding aerospace applications, employs micromachined silicon piezoresistive strain gages fused with high temperature glass to a stainless steel diaphragm. This approach achieves media compatibility simply and while elegantly providing an exceptionally stable sensor without the pn junctions of conventional micromachined sensors.

This product is geared to the OEM customer using medium to high volumes. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Center stands ready to provide a semi-custom design where the volume and application warrants.

MSP300 Pressure Sensor Features
? One Piece Stainless Steel Construction
? Ranges up to 15kpsi
? Digital Pressure and Temperature Output or Analog mV/Amplified Output
? ±1 %Span Accuracy
? UL Certification (analog only)

MSP300 Pressure Sensor Applications
? Pumps and Compressors
? Hydraulic/Pneumatic Systems
? Automotive Test Systems
? Energy and Water Management
? Medical Gas Pressure
? Leak Detection
? Remote Measuring Systems
? General Pressure Measurements

MSP300 Pressure Sensor Performance Specifications (Analog)
Supply Voltage: 5.0V,
Ambient Temperature: 25°C (unless otherwise specified)
