Low Cost Trace or Percent Oxygen Transmitter - EMD-485

? Optional Ranges: 10/100/1000ppm/1%/5%/10%/25%/100%
? Accuracy: +/- 1% Full Scale Range
? Flow: 0 - 5 SCFH
? Output: 4-20mA & 0 - 1VDC
? Power: 12 - 24VDC
? Response time: T90 in 10 Seconds
? Temperature: 0-50 Deg C

Model Number: EMD-485
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

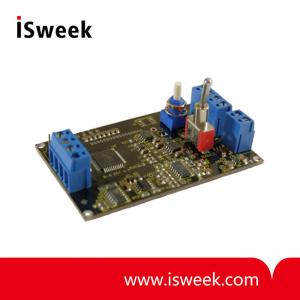

EMD-485 OEM Oxygen Transmitter
? Low Cost Trace or Percent Oxygen Transmitter
? 4 - 20mA Analog Output and 0 - 1 VDC
? New Updated Microprocessor Based Design
? Factory Configurable Ranges
? Optional Display, Sensor, Sensor Housings

EMD-485 OEM Oxygen Transmitter Applications:
? Inert Glove Box Systems
? Nitrogen and O2 PSA Generators
? Laboratories & Universities
? Beverage Grade CO2 Monitoring
? Air Separation Plants & Many Others

EMD-485 OEM Oxygen Transmitter Specifications:

Ranges:	Two Pre-Configured (See Options)
Accuracy:	+/- 1% Full Scale Range*
Calibration:	Every 2-3 Months
Calibration:	On Board Potentiometer
Classification:	General Purpose
Connections:	See Options
Dimensions :	Board
Display:	None
Flow:	0 - 5 SCFH
Output:	4-20mA & 0 - 1VDC
Power:	12 - 24VDC
Response time:	T90 in 10 Seconds
Sensor (Optional):	TO2-1x Trace Oxygen
Sensor Life:	15-21 months
Temperature:	0-50 Deg C
Warranty:	9 Months Sensor
Warranty:	12 Months Electronics

*Accuracy at constant conditions

EMD-485 OEM Oxygen Transmitter Optional Accessories:
? Optional Ranges: 10/100/1000ppm/1%/5%/10%/25%/100% (Other Ranges Available on Request)
? H3 Flow Through Sensor Housing 1/8"
? H1 Direct Install KF-40 Sensor Housing

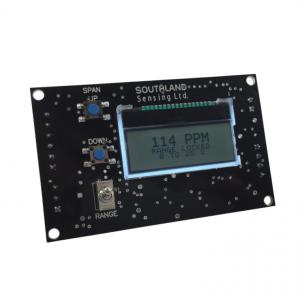

? Optional Graphical Display W/ Backlight
? Other Customization Packages Available

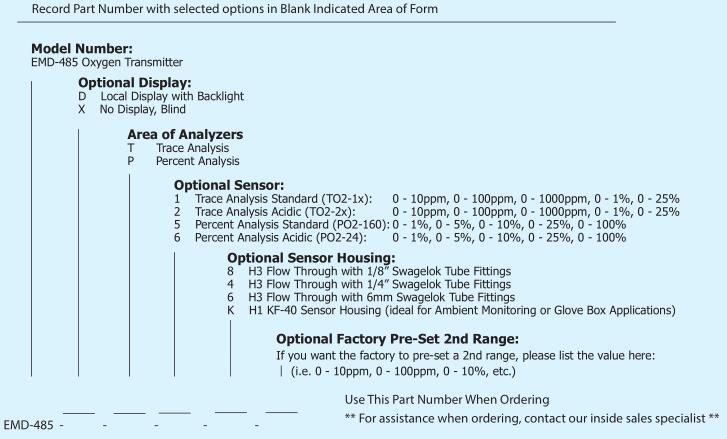

EMD-485 OEM Oxygen Transmitter Order Information
