Low Ratio Wound Primary Current Transformer - Model 10WP

Product Specification

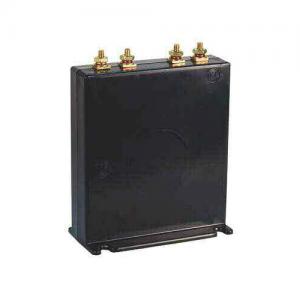

The Model 10WP is a low ratio wound primary current transformer, suitable for primary currents up to 40 amperes. The Model 10WP table lists the most common current ratings. Primary terminals for the Model 10WP are: for ratios of 25:5 and below, No. 8-32 brass studs with one flatwasher, lockwasher and regular nut, for ratios of 30:5 and above, 1/4-20 brass studs with one flatwasher, lockwasher and regular nut.

Model 10WP Low Ratio Wound Primary Current Transformer Features
? Secondary Terminals:
  Brass studs No. 8-32 UNC with one flatwasher, lockwasher and regular nut.

Model 10WP Low Ratio Wound Primary Current Transformer Specifications
? Continuous Thermal Current Rating Factor:
  1.33 at 30° C amb., 1.0 at 55° C amb.
? Frequency: 50 - 400 Hz.
? Insulation Level: 0.6 kV, BIL 10kV full wave.
? Approximate weight: 1.5 lbs.

Model 10WP Low Ratio Wound Primary Current Transformer Part Number
