LPG Gas Sensor for Coal Mine Use - MC112

Configuration
The bridge output in liner
Fast response
Good reproducibility and selectivity
Working stability
Excellent resistance of H2S, silicon poisoning

Model Number: MC112

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

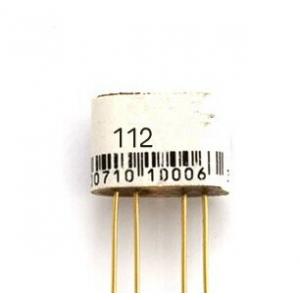

LPG gas sensor for coal mine use MC112

MC112 is a catalytic gas sensor
MC112 operates on the catalytic combustion principle, and its two arms of electric bridge consists of a test element and a compensate element.

The resistance of the test element rises when meeting the combustible gas, in the same time, the output voltage of the bridge changed, the voltage variable rises in direct proportion as the gas concentration, the compensate element as a reference, and compensate of temperature and humidity.

Features:

Configuration
The bridge output in liner
Fast response
Good reproducibility and selectivity
Working stability

Excellent resistance of H2S, silicon poisoning

Applications:
Application in gas concentration detection in industrial field such as natural gas, LPG, coal gas, alkane and other combustible gas, gasoline, alcohol, ketone, benzene and other organic solvent
Combustible gas leaking alarm or detectors

Gas concentration meter

Technical information:
Detection gas: combustible gas such as LPG/LNG/coal gas, alkyl and others
Detection range: 0 to 100%LEL
Voltage: 3.0V
