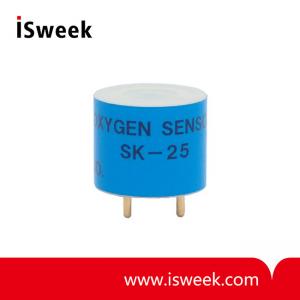

Maxell Oxygen Sensor - SK-25

Product Specification

    The Maxell Oxygen Sensor SK-25 is a unique galvanic cell type oxygen sensor. Its most notable features are no influence from CO2, good linearity up to 30% oxygen, and excellent chemical durability. This feature makes the sensor ideal for oxygen monitoring in various applications such as combustion gas monitoring, the biochemical field, domestic combustion appliances, etc.



Features:

* Virtually no influence from CO2, CO, H2S, NO, H2

* Temperature compensation circuit included

* Good linearity

* No position dependency

* Stable output signal

* No external power supply required for sensor operation

* No warmup time is required



Applications:

* Safety - Oxygen monitors

* Environmental controls - Combustion gas monitoring

* Food industry - Refrigeration, greenhouses

* Education – Science lab instruments



Dimensions:



Specifications:



 Notes:

1) When calibrated at both 0% and 30% of O2, accuracy in the range from 0-30% O2 shall be within ±1% full scale.

2) Sensors should be used under conditions where the air exchange is greater than 200~300ml/minute in order to obtain the response speed as specified in Table 1.

3) Life expectancy at 20? ± 1?C / 60 ± 5%RH in normal air (1013 ± 5hPa / 20.7% O2) is defined as the period until sensor output drops to 60% of original value.
