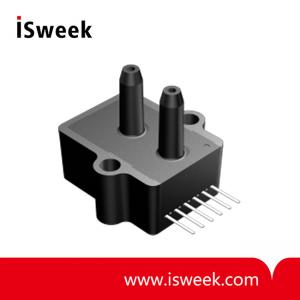

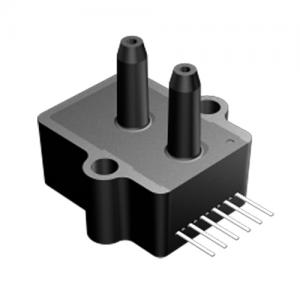

Medical Breathing Special Amplified Output Pressure Sensors - 120 CMH2O-D-4V

? Operating Pressure: -10 to 120 cm H2O
? Supply Supply Voltage: +4.5 to +5.5 Vdc
? Common-mode pressure: 10 psig
? Lead Temperature (soldering 2-4 sec.): 250°C
? Compensated Temperature: 5 to 50° C, -25 to 85° C
? Operating Temperature: -25 to 85° C
? Storage Temperature: -40 to 125° C
? Humidity Limits: 0 to 95% RH (non condensing)

Model Number: 120 CMH2O-D-4V
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Amplified Pressure Sensors
-10 cm H2O to 120 cm H2O Pressure Sensor

Amplified Output Pressure Sensors General Description
This Amplified Output pressure sensor is based upon a proprietary technology to compensate all errors. This model provides a calibrated amplified output with superior output characteristics. Output characteristics are tested at pressure and temperature and then digitally compensated using a proprietary 3D mapping scheme. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

Amplified Output Pressure Sensors Features
? 4 Volt ratiometric output
? Temperature Compensated
? Calibrated Zero and Span

Amplified Output Pressure Sensors Applications
? Medical Instrumentation
? Respiratory Breathing

Medical Breathing Special Amplified Output Pressure Sensors

Pressure Sensor Characteristics Maximum Ratings		Environmental Specifications
Supply Supply Voltage VS	+4.5 to +5.5 Vdc	Compensated Temperature	see specification
Common-mode pressure	10 psig	Operating Temperature	-25 to 85 °C
Lead Temperature (soldering 2-4 sec.)	250°C	Storage Temperature	-40 to 125 °C
		Humidity Limits	0 to 95% RH (non condensing)

Amplified Output Pressure Sensors Standard Pressure Ranges

Part Number	Operating Pressure	Compensated Range	Proof Pressure	Burst Pressure
120 CMH2O-D-4V	-10 to 120 cm H2O	5 to 50° C	300 cmH2O	600 cmH2O
120 CMH2O-D-4V-PRIME	-10 to 120 cm H2O	-25 to 85° C	300 cmH2O	600 cmH2O

Performance Characteristics for 120 CMH2O-D-4V

Parameter	Minimum	Nominal	Maximum	Maximum
Operating Range, pressure	-10	-	120	cmH2O
Output Voltage, @120 cmH2O	4.40	4.5	4.6	volt
Output Voltage @ zero pressure	0.30	0.35	0.40	volt
Output Voltage @-10 cmH2O	0.23	0.28	0.33	volt
Offset Temperature Shift (5°C-50°C)	-	-	±1.0	%span
Linearity, hysteresis error	-	0.05	±0.25	%fs
Span Shift (5°C-50°C)	-	-	±1.0	%span

Performance Characteristics for 120 CMH2O-D-4V-PRIME

Parameter	Minimum	Nominal	Maximum	Maximum
Operating Range, pressure	-10	-	120	cmH2O
Output Voltage, @120 cmH2O	4.40	4.5	4.6	volt
Output Voltage @ zero pressure	0.30	0.35	0.40	volt
Output Voltage @-10 cmH2O	0.23	0.28	0.33	volt
Offset Temperature Shift (-25 to 85°C)	-	-	±1.0	%span
Linearity, hysteresis error	-	0.05	±0.25	%fs
Span Shift (-25 to 85°C)	-	-	±1.0	%span
