Product Specification

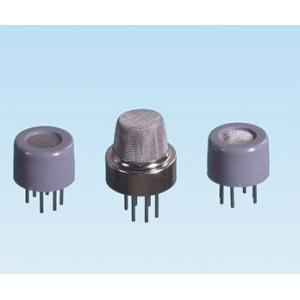

Methane CH4 Sensor Semiconductor Gas Sensor for Natural Gas MQ-K4

Specification:

Sensitive material of MQ-Q4 gas sensor isSnO2,?which with lower conductivity in clean air. When the targetcombustible gas exist, the sensor’s conductivity is higher along with the gasconcentration rising. Please use simple electronic circuit, Convert change ofconductivity to correspond output signal of gas concentration.?MQ-K4 gassensor has high sensitivity to Methane, also to Propane and Butane. The sensorcould be used to detect different combustible gas, especially Methane; it iswith low cost and suitable for different application.

Character:

1. Good sensitivity to Combustible gas in widerange

2. High sensitivity to Natural gas

3. Long life and low cost

4. Simple drive circuit

Application:

1. Domestic gas leakage detector

2. Industrial Combustible gas detector

3. Portable gas detector

Technical Parameter:

Gas: Natural gas Methane
Detection range: 300 to 10000ppm
Characteristic gas: 5000ppm methane CH4
Sensitivity: R in air / R in typical gas ≥ 5
Load Resistance: 1～50KΩ adjustable
Response time: ≤ 30s
Recovery time: ≤ 60s
Heating current: ≤ 150mA
Heating voltage: 5.0V
Measuring voltage: 5～50V
Operating Conditions Ambient temperature: -20～+55℃
????????????????????????Humidity: ≤ 95% RH
????????????????????????Environmental oxygen content: 21%
Storage conditions Temperature: -20～+70℃?

??????????????????????????Humidity: ≤ 70% RH
