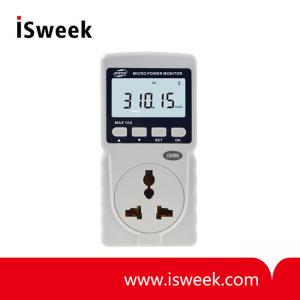

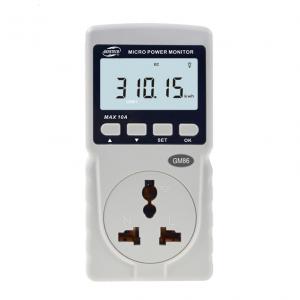

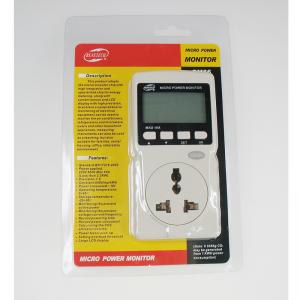

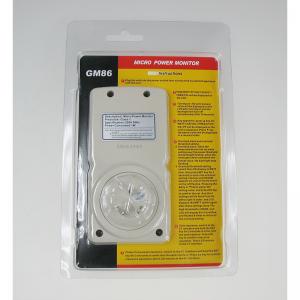

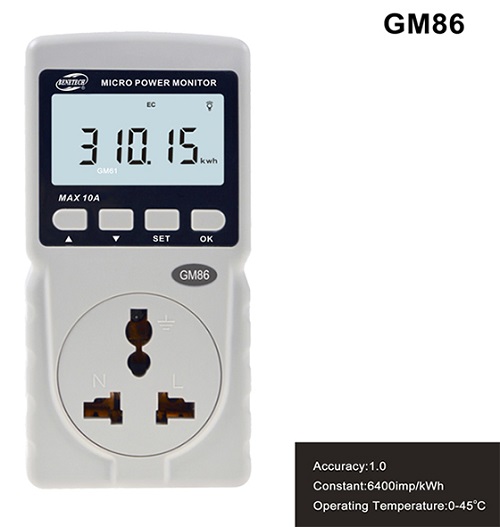

Micro Power Monitor - GM86

? Power supply: 220V 50Hz Max 10A(within 2.2KW)
? Accuracy: 1.0
? Constant: 6400imp/kWh
? Power dissipation: <1W
? Operating Temperature: 0~45℃
? Storage Temperature: -20~60℃
? Unit size?: 119.5*60*55.7mm?
? Weight?: 121.3g?

Model Number: GM86
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

GM86 Micro Power Monitor Introduction
This product adopts the microcomputer chip with high integration and specialized chip for energy metering, along with current sensor and LCD display with high precision, to achieve a comprehensive monitoring of electrical equipment, can be used to monitor the air conditioners, refrigerators and microwave ovens and other household appliances, measuring instruments can also be used as a teaching, but also suitable for families, rental housing, office, laboratory environment.

GM86 Micro Power Monitor Features
? Monitoring the present active power
? Monitoring the present voltage/current/ frequency
? Record powering time
? Record power consumed
? Calculating the CO2 emission volume (0.555kg CO2 may be generated from 1 KWH powerconsumption)
? Power factor pick-up
? Setting overload threshold
? Large LCD display

GM86 Micro Power Monitor Specification

Power supply	220V 50Hz Max 10A (Less than 2.2KW)
Accuracy	1.0
Constant	6400imp/kWh
Power consumed	<1W
Operating Temperature	0~45℃
Storage Temperature	-20~60℃
Backlight	turn off automatically after 10 seconds
Unit size	119.56055.7mm
Weight	121.3g
